05-22-2011
Nawarkk, what paint did you use for the pvc pipe?
Going to the store today. So a 3.5" coupler fits over a 3" pvc pipe? I think the coupler used by the op is called a 3" coupler but in reality is 3.5".
I installed today, everything went good. I used;
Spectre 9732 Filter
3" rubber coupler (actually 3.5")
4" band clamp+3" band clamp
3" 45 degree pvc pipe elbow.
Then cut the bottom piece off the stock air intake to set the pcm on so it wouldn't flop around. Filter fit good but was tight (hits cross beam and pcm)
Hope to have pics up soon. Thanks for the help.
Justin
Last edited by Xanthous; 05-23-2011 at 07:19 PM.
05-22-2011
what do you do with the plugs and wires that plug into the intake?
05-22-2011
make holes for em and set them in there...or get a grommet that fits it, and install it in your piping...Originally Posted by jspangler22
05-31-2011
putting a 3in to 4in coupler on the TB SUCKED DICK ASS VAGINA PENIS. i suggest getting a 3.5in to fit over the TB.
05-31-2011
Just get a 4" coupler and tighten it down on the TB.... probably easier to find than a 3.5 - 4" coupler and it will accomplish the same thing
05-31-2011
I found a 4" on the tbody is way to huge
06-01-2011
3.5" Couper on the TB is the way to go guys.
Or a 4" if you have a larger TB...such as the Billet ZZP, N*, or LS1
06-01-2011

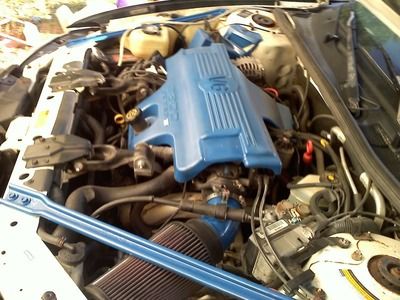

Here's my intake. (very similiar to nawarkk's) finally got some pics.
06-19-2011
what did you guys do with the computer in the intake box? I dont see any way of holding it still
06-19-2011
just leave it there, its weather proof and shock proof.
use some big zip ties if ya want to hold it down better.
06-19-2011
i was just worried it would slide over to where the fans are or wires ripping but ill just zip tie her down thanks
06-19-2011
i just COMPLETELY finished my intake...ive had several different designs on it...but this one is final lol, its nowhere close to hitting anything now, and it runs smooth...i used 4 inch pvc though...and left it white hehe
06-21-2011
Hello my friends, just did litle mod of my own today, very proud and happy. Got everything needed for setup in the Menards store that is better home depot. Filter i have bought here: link to ebay. I Found it on forum somebody recomended and i fount its amazing deal. For 35 buks i got 2 awesome filters and 4 stikers
. I saved one for other car or as replacement. So all calculated my mod came to be $27.89 with filter!
Looks something like that:
Last edited by d8teen; 06-23-2011 at 10:00 AM.
06-21-2011
How did you use the stock MAF "holder" ???
07-11-2011
now if you failed at a step, whats the worse possible thing that could happen? and how could you tell which step you failed at?
07-11-2011
Ummm...wut.
07-11-2011
You can't really FAIL at making an intake..
You have a tube and a filter at the end of it..
What did you not do correctly?
07-11-2011
you fail when it doesnt filter air.
07-11-2011
Maybe he just bolted a piece of wood to the throttle body and it doesnt start.
