    Quote Originally Posted by Turbocharged400sbc View Post
    that depends on where the crank gear ends up during the test fit after the chamfer and the corner getting squared up on the recess.

    as long as the recess depth is not changed....most Cam motion (intense) fit at .024-.030 and the comp cams at .022-.026 off the backside of the gear.
    make sure the gear is fully deburred (the alignment dimple keeps it from sitting flat on a lathe/surface grinder.
    Do you perform this Turbocharged400sbc ? Your inbox is full so I cannot Pm as I have tried to before. My email is mechanic860@comcast.net if need be.

    If not do I just tell someone who can that I need to remove .022? Then I will be better off than how it comes In the package?

    I received my XP and Double Rollmaster today. I have heard that the cam vs cam gear is a press fit. As pictured below this is just putting it on by hand. Does this also have to be addressed machining wise? Or is a press fit 100% needed? I know stock is not.



    Last edited by PWNED; 02-17-2015 at 07:06 PM.
    02 Regal GS
    ZZP Headers/ 42#/ Intake/ S4 zzp sc/ Ported Lim/ LQ4/ HPT/ 3" to SuperTurbo/ Phenolic IC with 2.8 pulley/ XP/ Ported Heads
    PB-------12.3 @ 110.......312hp/350tq
    Reply With Quote


  2. #42 Re: Hinson Heads ___S3x___or S2x? What Timing setup?
    GXP Level Member coolone's Avatar
    Join Date
    Nov 2011
    Location
    NY
    Posts
    2,374
    Thanks (Received)
    0
    Likes (Received)
    3
    Dislikes (Received)
    0
    If you want perfection, install them both (crank & cam gears) and then measure the difference off of the block face. Then have em cut to eliminate any difference. I think mine were about .007 off, something I'm more than willing to deal with, lolz...
    Overkill BBC Cam, YT 1.8 RR's, Rhodes Lifters, STGII Heads, GenV, Pacesetters, 3" Exh to Tips, TEP Trans. N*, ID 75# injectors/E85 coming soon
    Reply With Quote


  3. #43 Re: Hinson Heads ___S3x___or S2x? What Timing setup?
    GXP Level Member Turbocharged400sbc's Avatar
    Join Date
    Jan 2008
    Location
    hangover park IL
    Posts
    2,714
    Thanks (Received)
    4
    Likes (Received)
    11
    Dislikes (Received)
    0
    ive seen too much variance to do anything other than custom fit.

    i cant really suggest anything other than custom fit. your looking at endplay variances between the cam and crank, tolerance stacking is a pita

    the cam snout is larger od as it nears the shoulder yes its press, the cam and crank gears could benifit from crocus clothing as the keyway cutting has deformed them to a degree, thankfully the cam gear keyway deformation is removed when its cut or ground down.
    the crank has a ton of work. i spend 15+ minutes with crocus cloth on them bastards and they are still a pita to install, install without cleanup and TIR is variable.

    then you have to go through and deburr all the teeth with a needle file to get the sharp edges left from hobbing the teeth. do this and the chain and gears install easier as the chain isnt so bloody tight. probably increases chain life
    ~James~ Psychotic Gearhead
    projects: 84 Cressida waGN~ 90 LN3 3800, equal length headers, T70, 89 700r4, misc parts,
    1994 Oldsmobile 442 (462ci-4wd-2 engines) L67/4t80e^2,
    00 Turbo Regal 608 fwhp 575ftlbs at 5500rpm, 98 WhippledRiv, 97 GTP
    Reply With Quote


  4. #44 Re: Hinson Heads ___S3x___or S2x? What Timing setup?
    GrandPrix Junkie CrazyGuy03's Avatar
    Join Date
    Jan 2010
    Location
    Buffalo
    Posts
    3,868
    Thanks (Received)
    0
    Likes (Received)
    2
    Dislikes (Received)
    0
    Quote Originally Posted by Turbocharged400sbc View Post
    ive seen too much variance to do anything other than custom fit.

    i cant really suggest anything other than custom fit. your looking at endplay variances between the cam and crank, tolerance stacking is a pita

    the cam snout is larger od as it nears the shoulder yes its press, the cam and crank gears could benifit from crocus clothing as the keyway cutting has deformed them to a degree, thankfully the cam gear keyway deformation is removed when its cut or ground down.
    the crank has a ton of work. i spend 15+ minutes with crocus cloth on them bastards and they are still a pita to install, install without cleanup and TIR is variable.

    then you have to go through and deburr all the teeth with a needle file to get the sharp edges left from hobbing the teeth. do this and the chain and gears install easier as the chain isnt so bloody tight. probably increases chain life

    Hey btw, did you have a chance to clear your inbox yet? I sent ya a PM
    2003 Buick Regal GSX lots of mods - click here to see latest build - http://www.grandprixforums.net/threa...ld-for-the-gsx

    *For Reference - Does not have a Zack Howard Cam - It's an Intense Stage 3 - Thank You*
    Reply With Quote


  5. #45 Re: Hinson Heads ___S3x___or S2x? What Timing setup?
    GT Level Member Overkill's Avatar
    Join Date
    Dec 2007
    Location
    Nanaimo British Columbia
    Posts
    244
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    You shouldn't need much off the cam gear at all or if at all, the crank is the most important.

    Years ago before we discovered this, in my own engine, I twice had to fix the cam retainer plate being cracked and had to fix the cam and this was all because the cam was being pulled forward by the chain to try and align the two gears.

    Once machined, use a straight edge to line up the gears and ensure that the cam has play back and forth from that position, and if so you should be fine.

    You also don't need a machined oil pump cover once the crank gear is fixed.

    Email all inquiries to willoverkill@gmail.com!
    Reply With Quote


  6. #46 Re: Hinson Heads ___S3x___or S2x? What Timing setup?
    GT Level Member PWNED's Avatar
    Join Date
    Jul 2008
    Location
    Hooksett,NH
    Posts
    399
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    Quote Originally Posted by Turbocharged400sbc View Post
    ive seen too much variance to do anything other than custom fit.

    i cant really suggest anything other than custom fit. your looking at endplay variances between the cam and crank, tolerance stacking is a pita

    the cam snout is larger od as it nears the shoulder yes its press, the cam and crank gears could benifit from crocus clothing as the keyway cutting has deformed them to a degree, thankfully the cam gear keyway deformation is removed when its cut or ground down.
    the crank has a ton of work. i spend 15+ minutes with crocus cloth on them bastards and they are still a pita to install, install without cleanup and TIR is variable.

    then you have to go through and deburr all the teeth with a needle file to get the sharp edges left from hobbing the teeth. do this and the chain and gears install easier as the chain isnt so bloody tight. probably increases chain life
    Thank you for the info.

    Will it be a bad idea to have the cam gear inner machined a tad so it is not a pressed fit to the cam?

    Do you still perform this work? If not I found another on here that can.


    My machine shop wants the Rockwell hardness before even attempting the chamfer on the crank gear.
    02 Regal GS
    ZZP Headers/ 42#/ Intake/ S4 zzp sc/ Ported Lim/ LQ4/ HPT/ 3" to SuperTurbo/ Phenolic IC with 2.8 pulley/ XP/ Ported Heads
    PB-------12.3 @ 110.......312hp/350tq
    Reply With Quote


  7. #47 Re: Hinson Heads ___S3x___or S2x? What Timing setup?
    GT Level Member PWNED's Avatar
    Join Date
    Jul 2008
    Location
    Hooksett,NH
    Posts
    399
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    Quote Originally Posted by Overkill View Post
    You shouldn't need much off the cam gear at all or if at all, the crank is the most important.

    Years ago before we discovered this, in my own engine, I twice had to fix the cam retainer plate being cracked and had to fix the cam and this was all because the cam was being pulled forward by the chain to try and align the two gears.

    Once machined, use a straight edge to line up the gears and ensure that the cam has play back and forth from that position, and if so you should be fine.

    You also don't need a machined oil pump cover once the crank gear is fixed.
    Thank you for the info.
    02 Regal GS
    ZZP Headers/ 42#/ Intake/ S4 zzp sc/ Ported Lim/ LQ4/ HPT/ 3" to SuperTurbo/ Phenolic IC with 2.8 pulley/ XP/ Ported Heads
    PB-------12.3 @ 110.......312hp/350tq
    Reply With Quote


  8. #48 Re: Hinson Heads ___S3x___or S2x? What Timing setup?
    GXP Level Member Timing's Avatar
    Join Date
    Feb 2012
    Location
    gardner,mass
    Posts
    2,142
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0

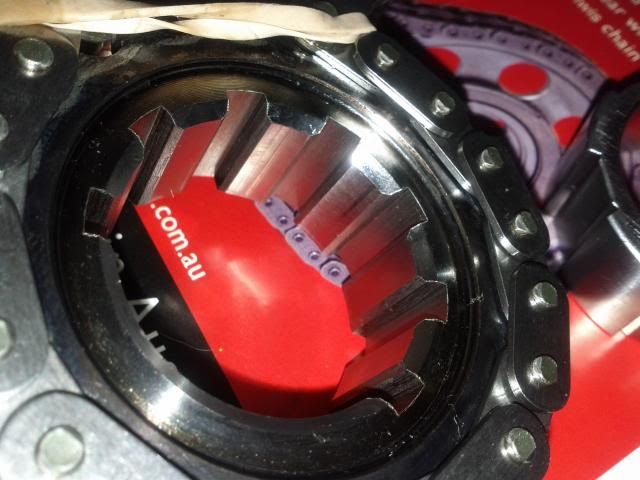

    here is some pics comparing, you can see what i had done on my crank gear. Basicly you need to match the chamfer on the back so the gear can slide on fully. Also the lip above that has to be squared out.

    Edit: also DO NOT machine anything cam gear

    Here is how it comes


    Here is it machined
    08 MazdaSpeed 3- Treadstone tr8l, Ebay Piping, Ported intake,Thermal gasket, Cs Injector Seals,Cobb intake/inlet, Autotech Internals, Poly mounts, Speed Daddy DP, Magnaflow CB,
    RPF1 17x9 255/45 Direzza Zll
    04 COMPG- Vs, getrag 284 RIP
    Reply With Quote


  9. #49 Re: Hinson Heads ___S3x___or S2x? What Timing setup?
    GT Level Member PWNED's Avatar
    Join Date
    Jul 2008
    Location
    Hooksett,NH
    Posts
    399
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    Quote Originally Posted by Ginseng View Post
    here is some pics comparing, you can see what i had done on my crank gear. Basicly you need to match the chamfer on the back so the gear can slide on fully. Also the lip above that has to be squared out.

    Edit: also DO NOT machine anything cam gear

    Here is how it comes


    Here is it machined
    I see your in MA and I am in NH. What shop did this for you?
    02 Regal GS
    ZZP Headers/ 42#/ Intake/ S4 zzp sc/ Ported Lim/ LQ4/ HPT/ 3" to SuperTurbo/ Phenolic IC with 2.8 pulley/ XP/ Ported Heads
    PB-------12.3 @ 110.......312hp/350tq
    Reply With Quote


  10. #50 Re: Hinson Heads ___S3x___or S2x? What Timing setup?
    GXP Level Member Timing's Avatar
    Join Date
    Feb 2012
    Location
    gardner,mass
    Posts
    2,142
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    Quote Originally Posted by PWNED View Post
    I see your in MA and I am in NH. What shop did this for you?
    Pk Machine in fitchburg,ma

    Edit: Any machine shop can do it. Just buy a crank gear from any auto parts store to compare it to and then return it after.
    Last edited by Timing; 02-18-2015 at 04:30 PM.
    08 MazdaSpeed 3- Treadstone tr8l, Ebay Piping, Ported intake,Thermal gasket, Cs Injector Seals,Cobb intake/inlet, Autotech Internals, Poly mounts, Speed Daddy DP, Magnaflow CB,
    RPF1 17x9 255/45 Direzza Zll
    04 COMPG- Vs, getrag 284 RIP
    Reply With Quote


  11. #51 Re: Hinson Heads ___S3x___or S2x? What Timing setup?
    GT Level Member PWNED's Avatar
    Join Date
    Jul 2008
    Location
    Hooksett,NH
    Posts
    399
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    Quote Originally Posted by Ginseng View Post
    Pk Machine in fitchburg,ma

    Edit: Any machine shop can do it. Just buy a crank gear from any auto parts store to compare it to and then return it after.
    My local machine shop wants the Rockwell hardness before even attempting to perform this for me. I have a stock crank gear off my spare motor anyway.
    02 Regal GS
    ZZP Headers/ 42#/ Intake/ S4 zzp sc/ Ported Lim/ LQ4/ HPT/ 3" to SuperTurbo/ Phenolic IC with 2.8 pulley/ XP/ Ported Heads
    PB-------12.3 @ 110.......312hp/350tq
    Reply With Quote


  12. #52 Re: Hinson Heads ___S3x___or S2x? What Timing setup?
    GXP Level Member Turbocharged400sbc's Avatar
    Join Date
    Jan 2008
    Location
    hangover park IL
    Posts
    2,714
    Thanks (Received)
    4
    Likes (Received)
    11
    Dislikes (Received)
    0
    only the chain teeth of the crank sprocket are induction hardened and it barely gets to the shoulder pocket

    ive always used a non radiused <90* carbide cutter

    for the tiny amount your removing id bet even HSS would work, i know it does on the keyway section since its more durable than carbide at interupted cuts
    ~James~ Psychotic Gearhead
    projects: 84 Cressida waGN~ 90 LN3 3800, equal length headers, T70, 89 700r4, misc parts,
    1994 Oldsmobile 442 (462ci-4wd-2 engines) L67/4t80e^2,
    00 Turbo Regal 608 fwhp 575ftlbs at 5500rpm, 98 WhippledRiv, 97 GTP
    Reply With Quote


  13. #53 Re: Hinson Heads ___S3x___or S2x? What Timing setup?
    GT Level Member PWNED's Avatar
    Join Date
    Jul 2008
    Location
    Hooksett,NH
    Posts
    399
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    Considering stock cam gear just slides on and off would it be bad if the rollmaster did the same? I was searching a while back and came across someone saying that he was comparing a few setups and some were snugger/looser than others. I believe the word JP came up and it slid right on.
    02 Regal GS
    ZZP Headers/ 42#/ Intake/ S4 zzp sc/ Ported Lim/ LQ4/ HPT/ 3" to SuperTurbo/ Phenolic IC with 2.8 pulley/ XP/ Ported Heads
    PB-------12.3 @ 110.......312hp/350tq
    Reply With Quote


  14. #54 Re: Hinson Heads ___S3x___or S2x? What Timing setup?
    GT Level Member dezebe1's Avatar
    Join Date
    May 2013
    Location
    Dallas TX
    Posts
    445
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    I know mine was so tight I would have had to hammer it on. I took a file to clean up all the burs from machining and even had to use a cross buff to the inside diameter to enlarge it just a c-hair to get it to slide onto the crank with minimal resistance, where as the stock factory one just goes on with one finger
    Team JB-Weld
    Reply With Quote


  15. #55 Re: Hinson Heads ___S3x___or S2x? What Timing setup?
    GT Level Member PWNED's Avatar
    Join Date
    Jul 2008
    Location
    Hooksett,NH
    Posts
    399
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    My crank gear is the same way. I cannot get it to go on. Rather send it out to get chamfered first.
    02 Regal GS
    ZZP Headers/ 42#/ Intake/ S4 zzp sc/ Ported Lim/ LQ4/ HPT/ 3" to SuperTurbo/ Phenolic IC with 2.8 pulley/ XP/ Ported Heads
    PB-------12.3 @ 110.......312hp/350tq
    Reply With Quote
