  1. #1 Pic Request
    GT Level Member outonthetiles's Avatar
    Join Date
    Dec 2011
    Location
    Herkimer, NY
    Posts
    261
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    I'm going to retrofit a GP HUD into my '00 Impala. Does anyone have any pictures of how the HUD unit mounts in the dash? Thanks.
    Reply With Quote


  2. #2 Re: Pic Request
    GTP Level Member buickman104's Avatar
    Join Date
    Mar 2008
    Location
    NYC
    Posts
    984
    Thanks (Received)
    0
    Likes (Received)
    1
    Dislikes (Received)
    0
    Billboost is your man when it comes to adding HUDs to cars that were never mean to have them. He should have pictures and know the general wiring you need to do.
    2000 Bronze Metallic GTP
    Power :Gen V, 3.6 pulley, 3 inch down pipe, Power log, FWI,and DHP Power Tuner,
    Handling: Vogtland Springs, GMPP sway bars, STBS, 18" Konig backbone, CTS-V Front brakes and GXP rear brakes
    Reply With Quote


  3. #3 Re: Pic Request
    Turbo is the way to go. BillBoost37's Avatar
    Join Date
    Jul 2009
    Location
    W Spfld
    Posts
    26,815
    Thanks (Received)
    53
    Likes (Received)
    90
    Dislikes (Received)
    1
    You mean...something like this?
    http://www.grandprixforums.net/showt...highlight=easy

    The pics of the measurements on the dash. You can likely double check that the dash panel uses the same clip locations and do some measurements based on the pics etc. I made sure to include the panel clip locations as part of the pics for that reason.
    I drink..so consider that when reading my posts.

    2010 Audi A6 Dual IC's
    Reply With Quote


  4. #4 Re: Pic Request
    I live here. DirtDog's Avatar
    Join Date
    Jun 2012
    Location
    Jacksonville, North Carolina, United States
    Posts
    7,750
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    ^^^^^^ gtfo
    http://www.grandprixforums.net/my-06-gp-gxp-72403.html
    OBX headers, TEP tranny cooler, ls1 IM fuel rails and injectors, ls2 TB, ls7 MAF, full custom exhaust, Quad retro headlights, full out front and rear suspension work, tuned by HPT by me 8====>

    Reply With Quote


  5. #5 Re: Pic Request
    GT Level Member outonthetiles's Avatar
    Join Date
    Dec 2011
    Location
    Herkimer, NY
    Posts
    261
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    Yep, that's the thread I was looking for. In the Impala the HVAC ducts are right under the dash pad where the HUD would be, not really a big deal because I don't drive the car in the winter and it doesn't have AC, but I'm going to have to do a lot more cutting. Also, it looks like the Impala doesn't have a VSS signal at the cluster, I believe it uses a Class2 Serial Data wire. I'm thinking this means I may have to use the 04+ HUD. I can tap into the VSS elsewhere, but does anyone know if the serial data wire will work?

    According to my service manual the cluster the Impala has:
    -Fuse Output-Battery
    -Ground
    -Low Coolant Level Indicator Lamp Output
    -Ground-Clean
    -Brake Fluid level Indicator Lamp Output
    -Turn Signal Lamp Feed-RF
    -Class2 Serial Data
    -Fuse Output-Accessory
    -Instrument Panel Lamp Feed
    -Check Engine Indicator Lamp Output
    -Windshield Wiper Fluid Level Return
    -Turn Signal Lamp Feed-LF
    Reply With Quote


  6. #6 Re: Pic Request
    Turbo is the way to go. BillBoost37's Avatar
    Join Date
    Jul 2009
    Location
    W Spfld
    Posts
    26,815
    Thanks (Received)
    53
    Likes (Received)
    90
    Dislikes (Received)
    1
    For the VSS, look at the connector for the cruise module. An 04 Regal buddy found that one to be missing as well and we located it there for him. Go with whatever you have that the vehicle has that could/was on the GP. Because the cars I've done this to so far have been 03 or earlier, it's mostly been a straightforward to follow this write up.

    On the ducts. The regal also doesn't line up perfectly, however it's close enough that it's not a problem in the defog/defrost arena. Ideally you'd pull the dash and replace the ductwork at the top with the GTP ducting.
    I drink..so consider that when reading my posts.

    2010 Audi A6 Dual IC's
    Reply With Quote


  7. #7 Re: Pic Request
    I live here. DirtDog's Avatar
    Join Date
    Jun 2012
    Location
    Jacksonville, North Carolina, United States
    Posts
    7,750
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    I'm not gonna lie I saw the words pic request and wanted to post penis pics
    http://www.grandprixforums.net/my-06-gp-gxp-72403.html
    OBX headers, TEP tranny cooler, ls1 IM fuel rails and injectors, ls2 TB, ls7 MAF, full custom exhaust, Quad retro headlights, full out front and rear suspension work, tuned by HPT by me 8====>

    Reply With Quote


  8. #8 Re: Pic Request
    GT Level Member outonthetiles's Avatar
    Join Date
    Dec 2011
    Location
    Herkimer, NY
    Posts
    261
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    I don't believe the GP ducts will work, the under dash structure is completely different on an Impala. It's made of steel on a GP, and magnesium on an Impala. I may even have to cut into the magnesium to get it to fit. There's very little space between the dash pad and the dash structure.



    Reply With Quote


  9. #9 Re: Pic Request
    SE Level Member Thinksun's Avatar
    Join Date
    Sep 2012
    Location
    GTP Ontario
    Posts
    45
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    After having the HUD in my GTP, I feel all cars should have them. It looks like a bit of work retrofitting the factory unit, has anyone ever install one of these?

    http://cgi.ebay.com/ws/eBayISAPI.dll...tchlink:top:en

    http://www.ebay.com/itm/New-ActiSafe...4ef35f&vxp=mtr

    http://www.ebay.com/itm/HUD-head-up-...19c57a&vxp=mtr
    1997 GTP .
    Reply With Quote


  10. #10 Re: Pic Request
    GT Level Member outonthetiles's Avatar
    Join Date
    Dec 2011
    Location
    Herkimer, NY
    Posts
    261
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    Cool, but I'd like to keep my obd2 port free for my aeroforce. Plus I want something that looks factory, otherwise I'd just use the app on my phone..
    Reply With Quote


  11. #11 Re: Pic Request
    GXP Level Member Turbocharged400sbc's Avatar
    Join Date
    Jan 2008
    Location
    hangover park IL
    Posts
    2,714
    Thanks (Received)
    4
    Likes (Received)
    11
    Dislikes (Received)
    0
    impala's are just glass reinforced plastic
    ~James~ Psychotic Gearhead
    projects: 84 Cressida waGN~ 90 LN3 3800, equal length headers, T70, 89 700r4, misc parts,
    1994 Oldsmobile 442 (462ci-4wd-2 engines) L67/4t80e^2,
    00 Turbo Regal 608 fwhp 575ftlbs at 5500rpm, 98 WhippledRiv, 97 GTP
    Reply With Quote


  12. #12 Re: Pic Request
    GT Level Member outonthetiles's Avatar
    Join Date
    Dec 2011
    Location
    Herkimer, NY
    Posts
    261
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    What on an impala are you referring to?
    Reply With Quote


  13. #13 Re: Pic Request
    GXP Level Member Turbocharged400sbc's Avatar
    Join Date
    Jan 2008
    Location
    hangover park IL
    Posts
    2,714
    Thanks (Received)
    4
    Likes (Received)
    11
    Dislikes (Received)
    0
    the dash structure is glass reinforced plastic much like our valve covers.

    there is no magnesium as stated in a prior post, aluminum, yes, but mostly plastic with stuff like the knee deflector/etc being alum
    ~James~ Psychotic Gearhead
    projects: 84 Cressida waGN~ 90 LN3 3800, equal length headers, T70, 89 700r4, misc parts,
    1994 Oldsmobile 442 (462ci-4wd-2 engines) L67/4t80e^2,
    00 Turbo Regal 608 fwhp 575ftlbs at 5500rpm, 98 WhippledRiv, 97 GTP
    Reply With Quote


  14. #14 Re: Pic Request
    GT Level Member outonthetiles's Avatar
    Join Date
    Dec 2011
    Location
    Herkimer, NY
    Posts
    261
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    That's actually not true. It's made of metal, not plastic. It may not be magnesium, although when I modified mine to make a bracket for a clutch pedal, was welding near some of its shavings and they flared up. It was advertised as having "Mag-Beam" construction. I've had my Impala down to the unibody twice now, and I can tell you the dash structure is not made of plastic. Look at the first picture I posted.
    Reply With Quote


  15. #15 Re: Pic Request
    GXP Level Member Turbocharged400sbc's Avatar
    Join Date
    Jan 2008
    Location
    hangover park IL
    Posts
    2,714
    Thanks (Received)
    4
    Likes (Received)
    11
    Dislikes (Received)
    0

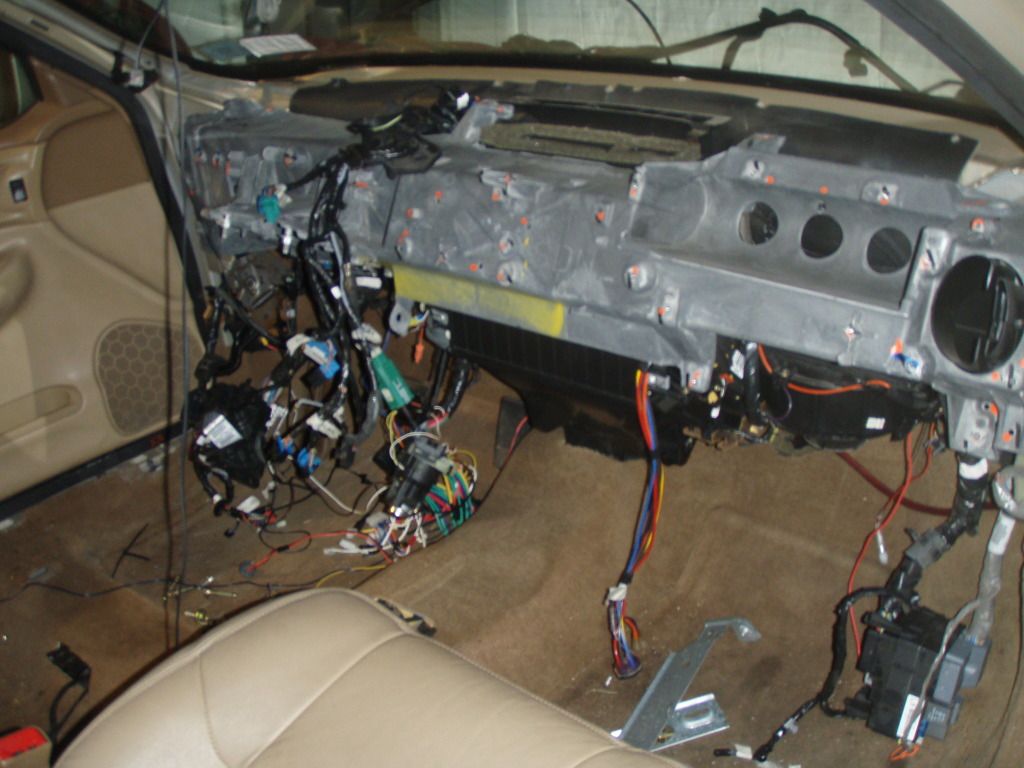

    that first picture shows the large glass reinforced ABS plastic dash structure.

    its molded around a thin steel frame that contains the nutserts that all the fasteners thread into.

    ive see burned impala's and that blackish/dark grey piece turns into a large sheet of glass fibers just like our valvecovers do

    there is a cast aluminum bracket near the colum pedestal/pedal assembly...aluminum flares up and is just as flammable as magnesium...but there is no way they made the plastic crash structure out of magnesium, no way they would spend more $ on metal than necessary...plastic is easier to injecton mold than it is to die cast aluminum or much more flammable magnesium parts....

    plus its lighter....sooo we have cheaper, cheaper, cheaper, lighter vs heavier, $ materials, $$ manufacture process, weight

    what do you think GM went with

    your car may have "mag beam" construction but that would likely just be the cross dash support bar...but then again it could just be sales jargon

    like PM "forged" rods....sounds good....but amazing how brittle, and cheaper to make....but no real strength unlike the older/more expensive cast rods that bend and dont break/shatter.

    in reality, they did it cause it was cheaper/faster for the grunts on the line to snap **** together and shave 3 minutes of assembly time....

    sorry bud but that piece going across the dash is the newer style glass reinforced ABS plastic dash module, GM is using them nowadays over steel/alum...its cheaper and faster and lighter...

    [img]http://i292.photobucket.com/albums/m...7/P6277052.jpg[/img]
    ~James~ Psychotic Gearhead
    projects: 84 Cressida waGN~ 90 LN3 3800, equal length headers, T70, 89 700r4, misc parts,
    1994 Oldsmobile 442 (462ci-4wd-2 engines) L67/4t80e^2,
    00 Turbo Regal 608 fwhp 575ftlbs at 5500rpm, 98 WhippledRiv, 97 GTP
    Reply With Quote


  16. #16 Re: Pic Request
    GT Level Member outonthetiles's Avatar
    Join Date
    Dec 2011
    Location
    Herkimer, NY
    Posts
    261
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    If you are so sure, I'll take another look. I have a spare one at my dad's house that I can dig out next weekend. It makes sense that gm would want to save money and weight, but when I cut mine up it did not seem plastic at all, it was solid metal. I will find out what it is for sure.
    Reply With Quote


  17. #17 Re: Pic Request
    GT Level Member outonthetiles's Avatar
    Join Date
    Dec 2011
    Location
    Herkimer, NY
    Posts
    261
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    http://www.gmheritagecenter.com/docs...let-Impala.pdf

    Check out page 7, it says its magnesium.

    Enough proof for you?


    Last edited by outonthetiles; 11-17-2013 at 09:35 AM.
    Reply With Quote


  18. #18 Re: Pic Request
    GXP Level Member Turbocharged400sbc's Avatar
    Join Date
    Jan 2008
    Location
    hangover park IL
    Posts
    2,714
    Thanks (Received)
    4
    Likes (Received)
    11
    Dislikes (Received)
    0
    that would end up being an extruded magnesium tube/beam (probably a mag/alum alloy more than anything) more than anything complicated just prom a production standpoint
    that front panel is plastic, around the opening molded into it youll likely see the fiberglass hairs

    it has metal in it...but it is a thin steel frame with the plastic injected around it
    ~James~ Psychotic Gearhead
    projects: 84 Cressida waGN~ 90 LN3 3800, equal length headers, T70, 89 700r4, misc parts,
    1994 Oldsmobile 442 (462ci-4wd-2 engines) L67/4t80e^2,
    00 Turbo Regal 608 fwhp 575ftlbs at 5500rpm, 98 WhippledRiv, 97 GTP
    Reply With Quote


  19. #19 Re: Pic Request
    GT Level Member outonthetiles's Avatar
    Join Date
    Dec 2011
    Location
    Herkimer, NY
    Posts
    261
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    There is no beam underneath the gray metal piece in the first picture. There is a molded plastic piece that bolts to it that the radio, cluster, etc bolts to, pictured in the other photos, but that black and not what I am referring to.

    The medal piece I'm talking about actually seconds as the brake pedal bracket, its what made it so much more work to fabricate a clutch pedal mount. I had to take the entire dash apart, unlike a grand prix where you can remove the brake pedal mount from the steel dash structure.

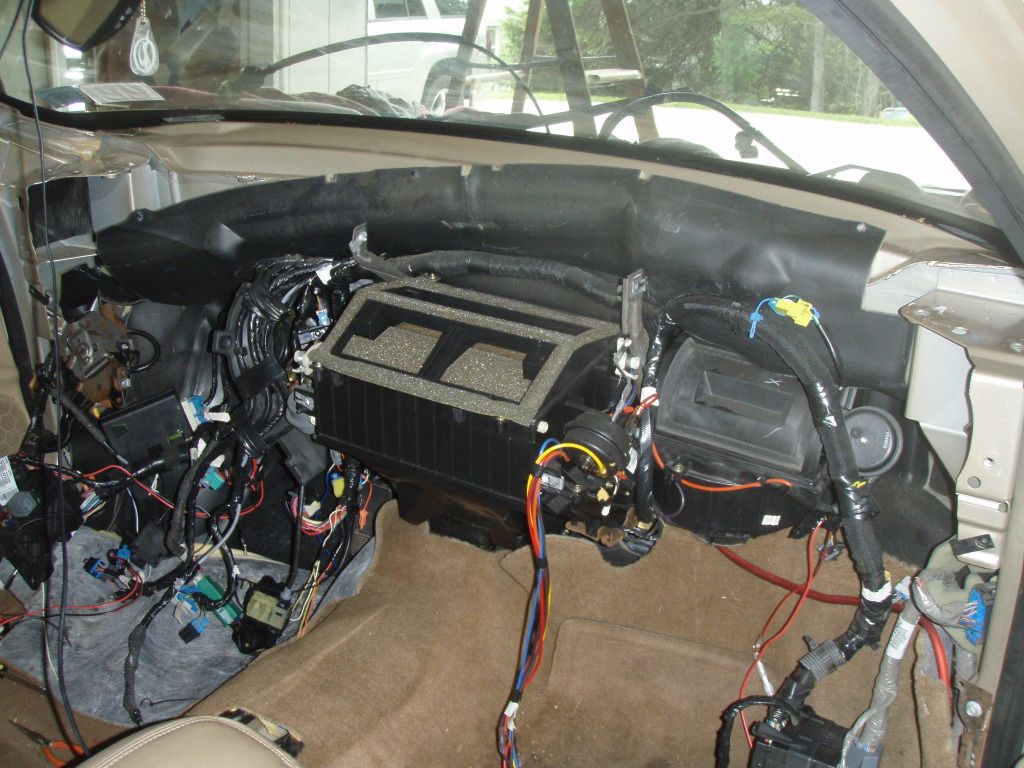

    This is what it looks like when you take the metal piece off, there's nothing underneath.

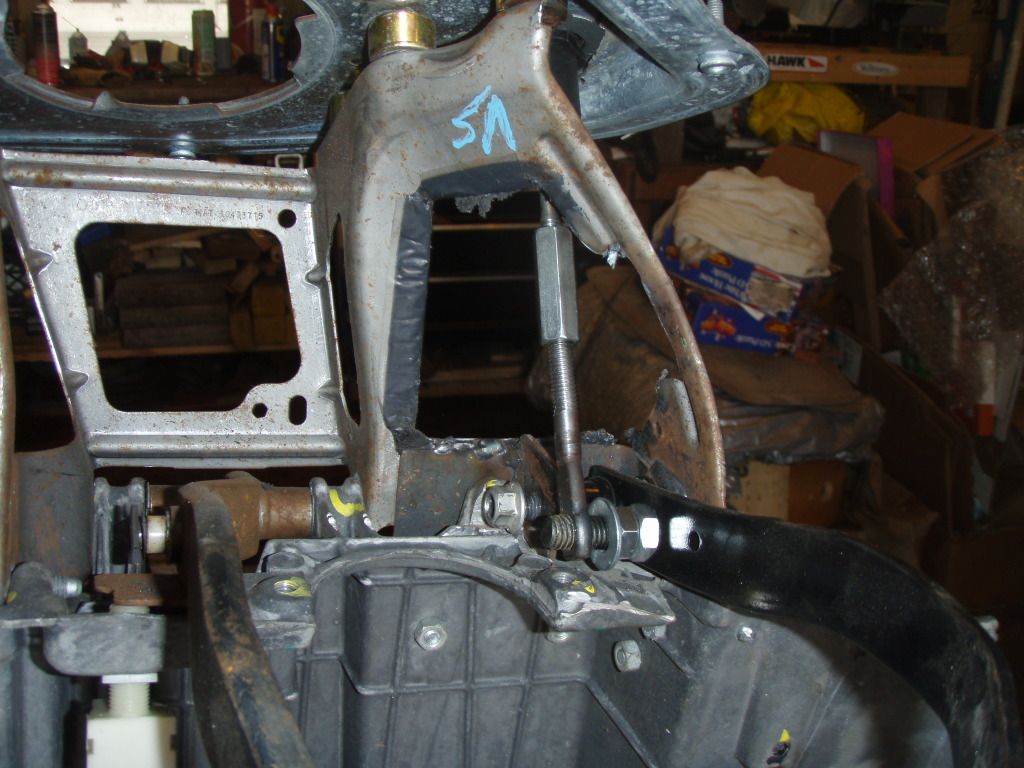

    This is the closest picture I have of the metal piece, you can clearly see that it is solid metal and there are no "hairs". Not talking about the cage that bolts to the firewall plate, talking about the very bottom solid metal piece in the picture. You can see where the steering column bolts to it.
    Last edited by outonthetiles; 11-17-2013 at 11:07 AM.
