Thread: 2006 EVAP routing.

Results 1 to 8 of 8
  1. #1 2006 EVAP routing.
    SE Level Member
    Join Date
    Jan 2016
    Location
    Northern California
    Posts
    19
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    Hello all!

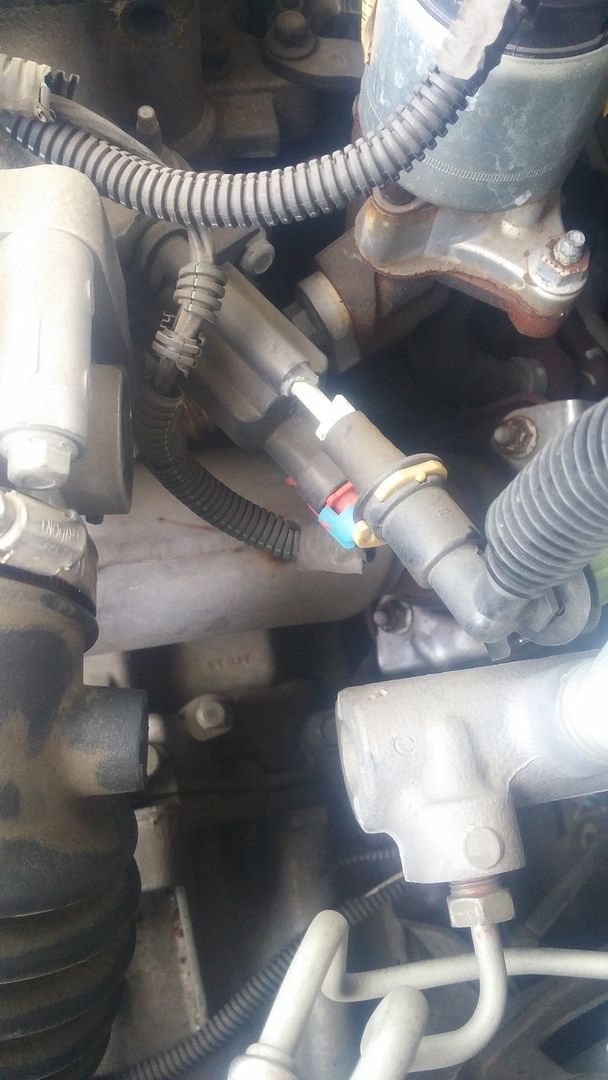

    I just purchased a 2006 Grand Prix GT for commuting in the city. As I do with all used vehicles I buy I do a general check and tune-up before taking her out for reliable service. This brings me to my first issue. While taking the MAF off to clean it I noticed a hose missing for the EVAP off the tube between the TB and MAF(picture below). Next to it looks like a hack job of some sort on what appears to the the EVAP hose. Can anyone take a picture of otherwise direct me on how these two are supposed to properly meet?

    Thanks in advance.

    Reply With Quote


  2. #2 Re: 2006 EVAP routing.
    Turbo is the way to go. Fivefingerdeathpunch's Avatar
    Join Date
    Sep 2009
    Location
    Rogers, MN
    Posts
    21,022
    Thanks (Received)
    21
    Likes (Received)
    45
    Dislikes (Received)
    0
    It looks like the nipple is broken off.

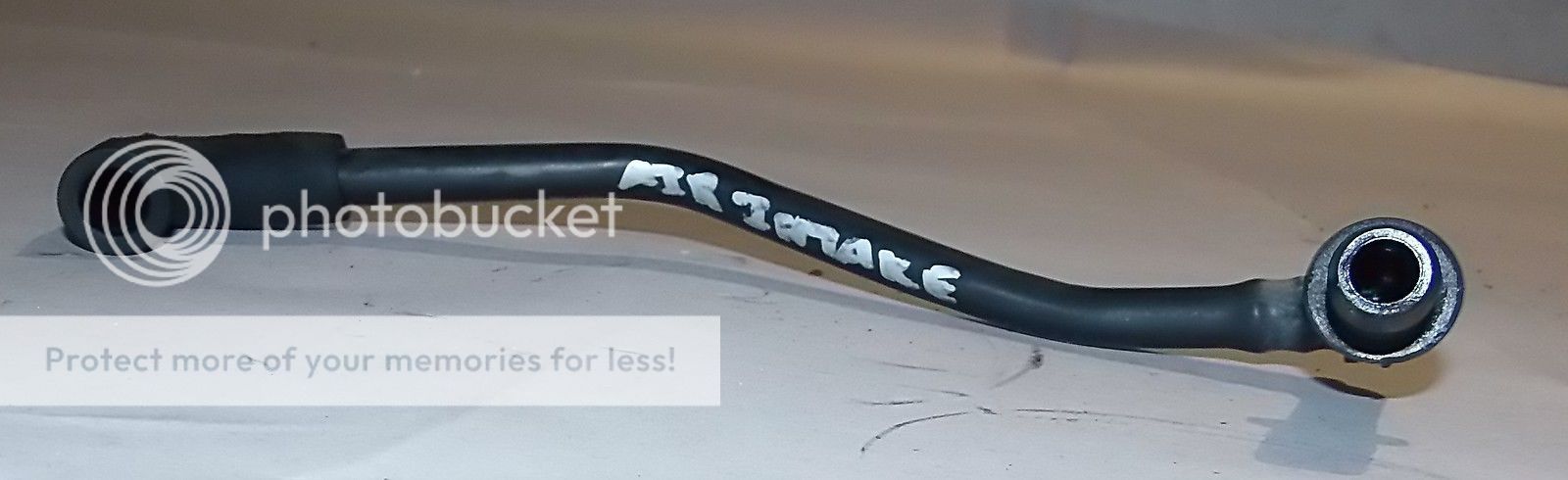

    I think this picture is correct.


    SMGPFC Member #1
    Reply With Quote


  3. #3 Re: 2006 EVAP routing.
    SE Level Member
    Join Date
    Jan 2016
    Location
    Northern California
    Posts
    19
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    How does it connect to the intake tube?
    Reply With Quote


  4. #4 Re: 2006 EVAP routing.
    Killa Bee Scottydoggs's Avatar
    Join Date
    Aug 2010
    Location
    new jersey
    Posts
    39,927
    Thanks (Received)
    63
    Likes (Received)
    166
    Dislikes (Received)
    5
    you pull that white thing thats jammed in there out, then that ring there is a lock ring i think. pretty much you push the black boot there on the line over the tube on the sensor there.

    98 Buick Regal GS, F body brakes, Caddy STS wheels, tinted tails L36 bottom end, lightly ported heads, 1.95 roller rockers, headers, gen 5 N* 3.0 pulley, FSIC, 42 lb injectors, a BrandonHall rebuilt trans, DHP tuned and AEM water/Meth injection https://goo.gl/gpV5kW
    Reply With Quote


  5. #5 Re: 2006 EVAP routing.
    SE Level Member
    Join Date
    Jan 2016
    Location
    Northern California
    Posts
    19
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0

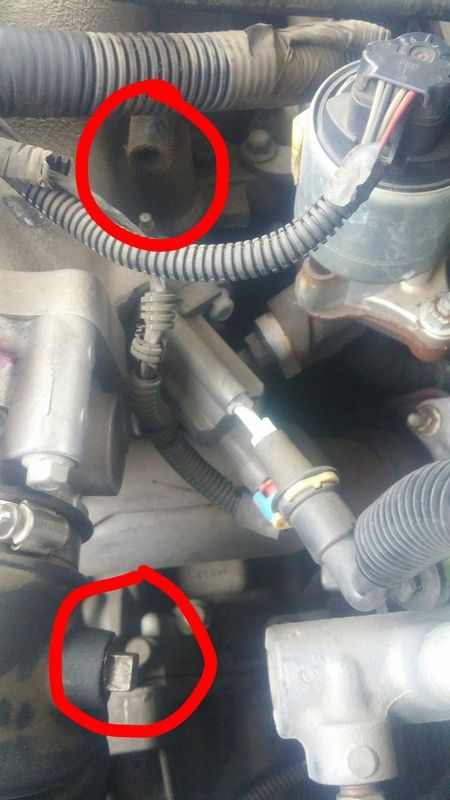

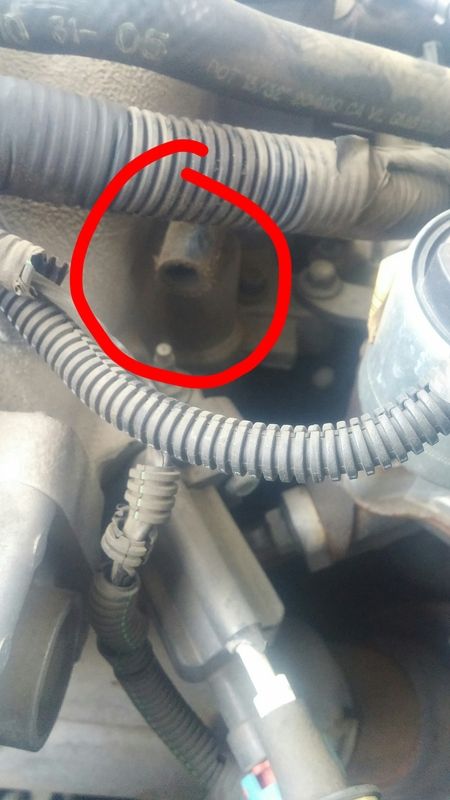

    Upon further inspection, I found this;



    I think these two need to be connected. I put a plug in it for the mean time.
    Reply With Quote


  6. #6 Re: 2006 EVAP routing.
    Killa Bee Scottydoggs's Avatar
    Join Date
    Aug 2010
    Location
    new jersey
    Posts
    39,927
    Thanks (Received)
    63
    Likes (Received)
    166
    Dislikes (Received)
    5
    your missing a hose from the lim to the tb i believe.

    98 Buick Regal GS, F body brakes, Caddy STS wheels, tinted tails L36 bottom end, lightly ported heads, 1.95 roller rockers, headers, gen 5 N* 3.0 pulley, FSIC, 42 lb injectors, a BrandonHall rebuilt trans, DHP tuned and AEM water/Meth injection https://goo.gl/gpV5kW
    Reply With Quote


  7. #7 Re: 2006 EVAP routing.
    GrandPrix Junkie spazzz's Avatar
    Join Date
    Nov 2012
    Location
    Madison
    Posts
    3,328
    Thanks (Received)
    3
    Likes (Received)
    8
    Dislikes (Received)
    0
    Like Scotty said. Those need to be connected.

    Good explanation in last post here.
    http://www.grandprixforums.net/threa...3800-series-II

    Reply With Quote


  8. #8 Re: 2006 EVAP routing.
    SE Level Member
    Join Date
    Jan 2016
    Location
    Northern California
    Posts
    19
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    Hmm, usually PVC is after the TB to create a vacuum on the crankcase. Glad I found where the hole connects to.
    Reply With Quote
