PRND321 Not lighting up in cluster

**GTPishere** · 08-25-2016

Hoping someone can help. I have a 2001 gtp, the PRND321 on the cluster is not lighting up at all in any gear.
Any ideas ?
I've been looking through the wires in the console and haven't found anything broken
Thanks

**Scottydoggs** · 08-25-2016

change the bulb yet?

**GTPishere** · 08-25-2016

there are 7 Leds on the cluster, its on a separate circuit board from the rest of the cluster everything looks ok

**Scottydoggs** · 08-25-2016

what year car you have? you add this led strip?

and where are the lights out? the dash or the console?

**GTPishere** · 08-25-2016

2001 GTP, There are out in the dash all factory

**Scottydoggs** · 08-25-2016

the light bulbs went out. take the trim off around the dash and cluster, then unscrew the cluster, theres a plug on the back un hook it, then take the bulbs out, they just turn in and out on a thumb screw deal thing.

**GTPishere** · 08-25-2016

ok thanks

**Bronco Boy** · 08-25-2016

I don't see any bulbs where the "PRND321" is.....

Originally Posted by GTPishere

there are 7 Leds on the cluster, its on a separate circuit board from the rest of the cluster everything looks ok

It does look this way.

**Scottydoggs** · 08-25-2016

what about that fat one right above that board you circled? turn it a 1/4 turn it comes out.

**GTPishere** · 08-26-2016

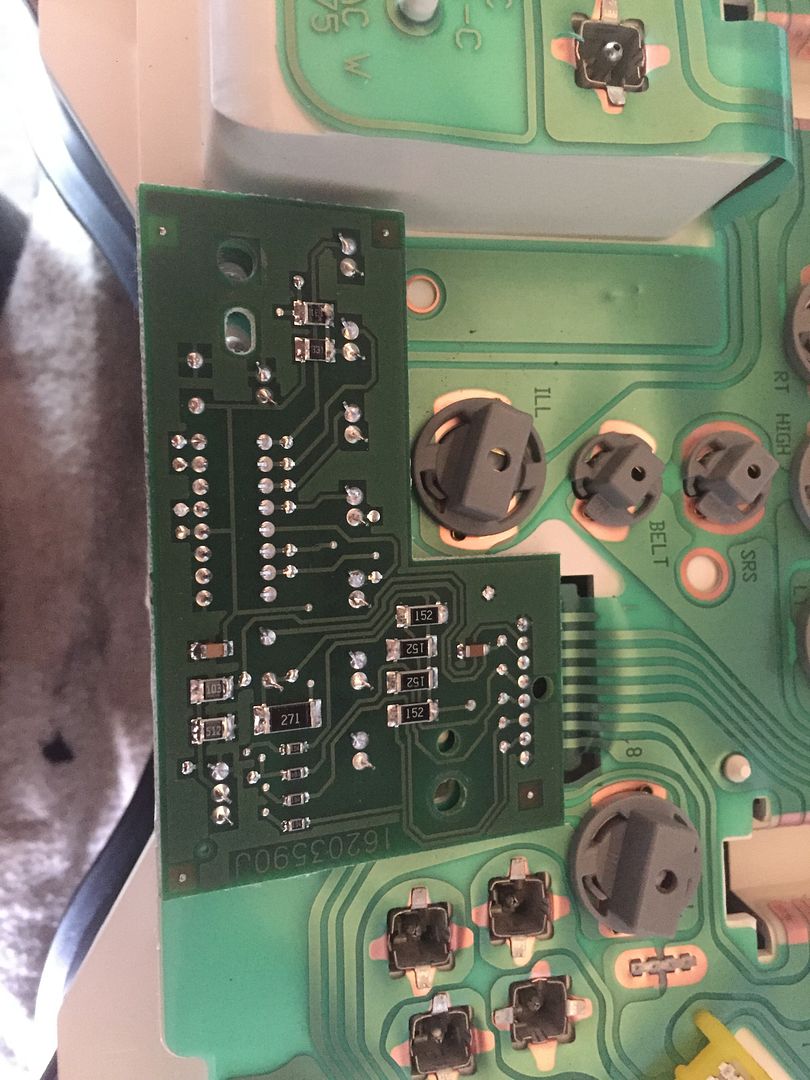

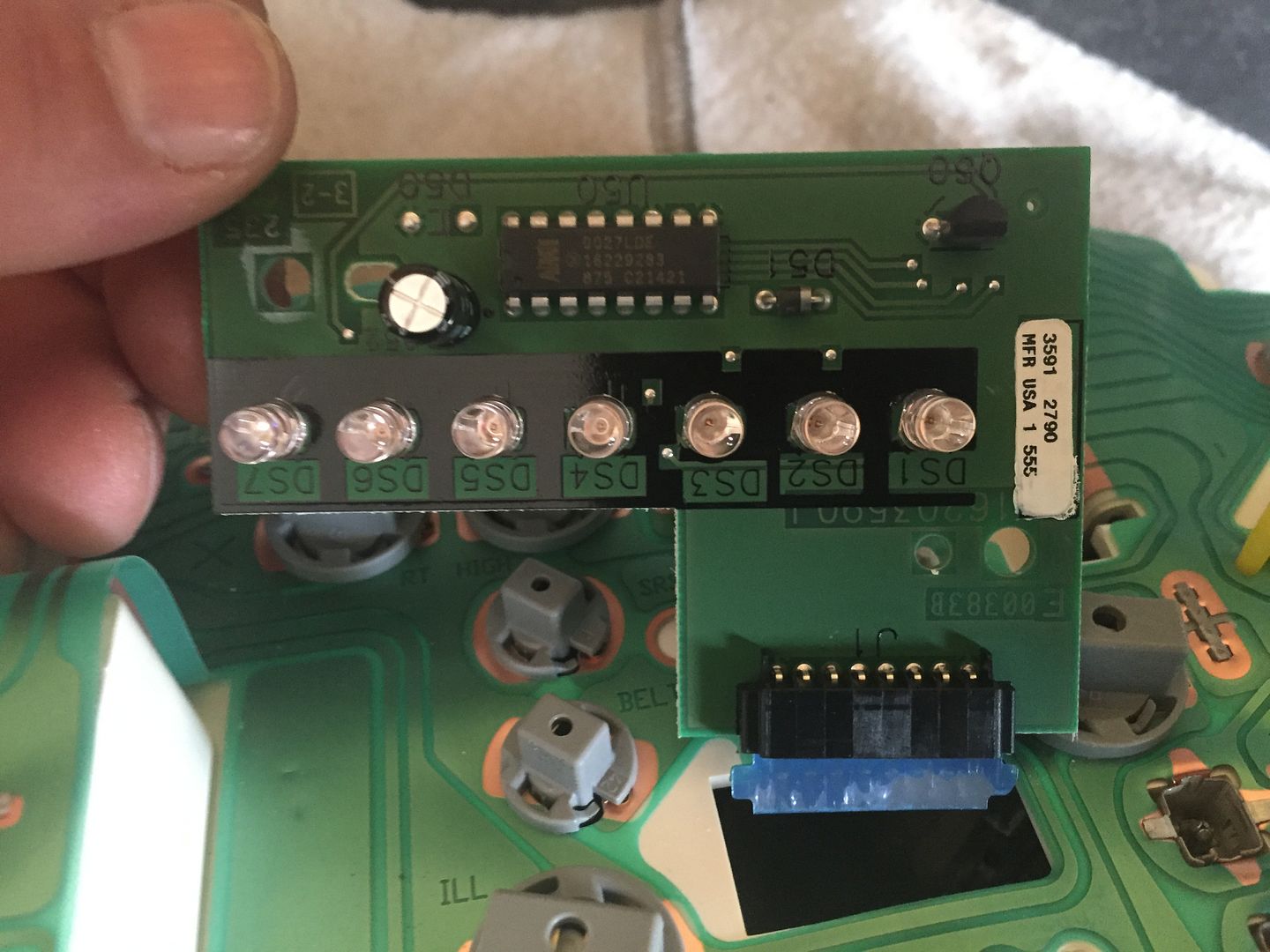

If you take out Thoses two screws where you have circled there are 7 leds soldered in and none light up
they all went out at the same time
you can see in the picture where I'm talking about is a different color
I tried to resolder everything in there but still a no go

**WarStryker13** · 08-26-2016

Well at least you know what to do now... JY hunting time.

**Bronco Boy** · 08-26-2016

Originally Posted by Scottydoggs

what about that fat one right above that board you circled? turn it a 1/4 turn it comes out.

I had to repair the bulbs shown below with wires joining them.....

And this is how the cluster looked before fixing it......

So, that lower bulb is for the cluster, not the "PNRD321".

**Scottydoggs** · 08-26-2016

im going with you dont have a led strip, its all light bulbs. and one or more are out. them plastic boards tend to fail, if you find a break along the paths there they sell a brush on paint like stuff to repair the board and fix the bad connection.

**Bronco Boy** · 08-26-2016

Time for somebody to pull their cluster and confirm. I know it ain't gonna be me.....yet. LOL

**Scottydoggs** · 08-26-2016

in your pic you can see the P is dimmed out. the bulbs just cast light behind the panel there, light shows light where its cut open.

**Bronco Boy** · 08-26-2016

Ya, I did notice that.

**GTPishere** · 08-26-2016

That's right no strip I don't have a strip
you lift up the circuit board and there are resistors and LEDs
I've looked for breaks and resoldered the resistors and still won't light up
ive pulled the consol apart and inspected the wires that run to the shifter and everything looks ok
Ive had it apart twice now and don't know what else to do
