Re: Spartan GL's Build Thread: (5-1-2012) PG 37 for ENGINE/TRANS Dropped in
1. Most of it changes how you want to install it.
Best thing I can tell you is the pump is gravity primed. Keep that in mind when mounting it.
2. Pump should have come with instructions on how to wire. Typically add a relay which is triggered by the fuel pump relay. You'll keep the same routing but use a 1" shorter belt IIRC.
3. RTV or this unicorn bill talks about: Permatex 26B
When removing, spray down with carb cleaner and let it soak in. That'll break it down so you don't damage anything trying to get it apart. The carb cleaner applies to RTV, have never tried 26B.
4. Heater hose. That clear stuff isn't designed for coolant and the heat. Heater hose is. Be careful when routing so that it doesnt rub. If need be you can use wire loom to protect it.
Re: Spartan GL's Build Thread: (5-1-2012) PG 37 for ENGINE/TRANS Dropped in
Re: Spartan GL's Build Thread: (5-1-2012) PG 37 for ENGINE/TRANS Dropped in
Couple of notes if you ever pull/install again and or for others.
1. I'd have the VC's on to keep any dirt out, plus it's easier on a stand/out of the car
2. Install the starter before you put the engine in along with it's plastic inspection shields etc.
3. I forget if the AC bracket was on, but I'd have put it on before drop in for the ac or pulley.
4. Remove the two 15mm bolts on the master cylinder and it'll swing out of the way. On a drivetrain install like yours..it gives you a bunch more room.
5. Thumbs up on connecting the headers while it was still partially up. I do the same
6. I'd do the ps pump at the same time.. with it almost in the cradle.
7. Install the oil level sensor, front knock sensor, starter wiring and grounds from above before putting on the front header.
8. Understand on teh trans tube. Much easier before dropping motor in or putting on headers. But it's possible.
9. I'd put the trans selector lever and range switch (if needed externally) on before dropping in. Can be done in car too.

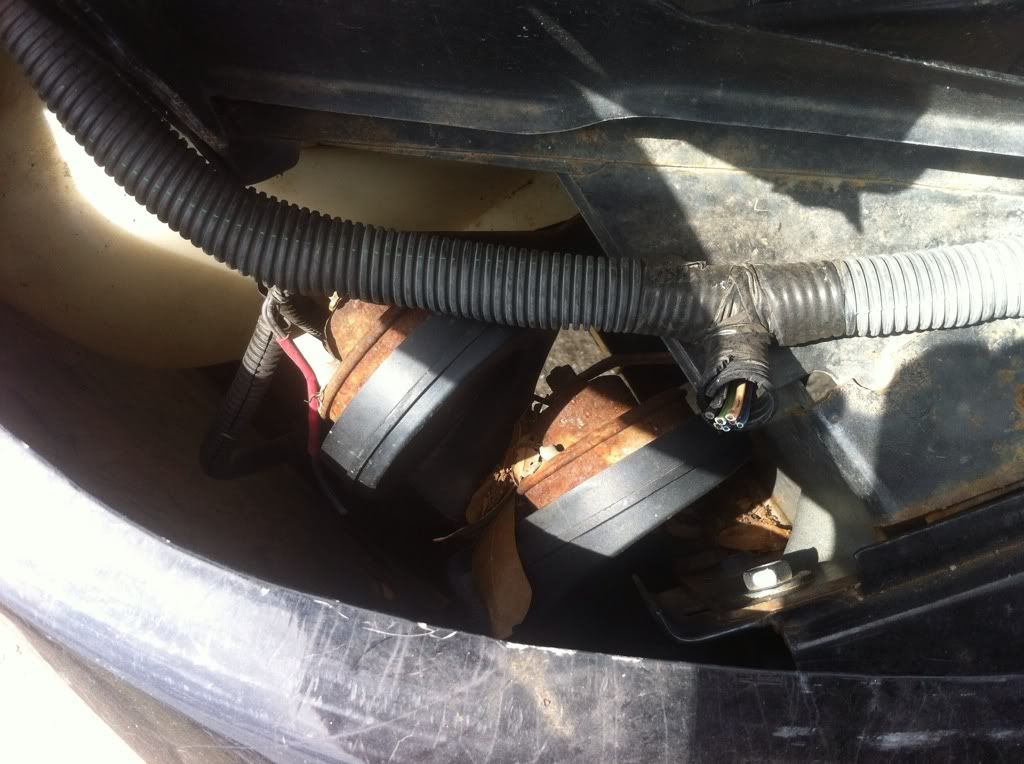

On the WP, did you get the wiring harness for it? If so, it's quick easy done.
http://i20.photobucket.com/albums/b2...r/IMG_2512.jpg

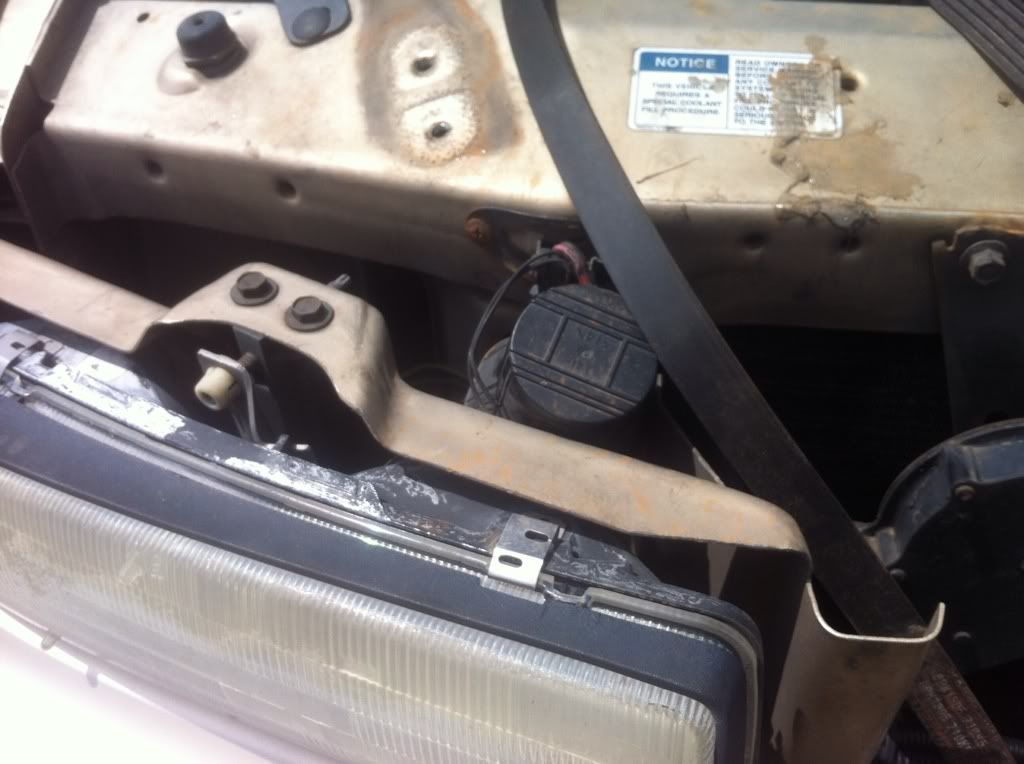

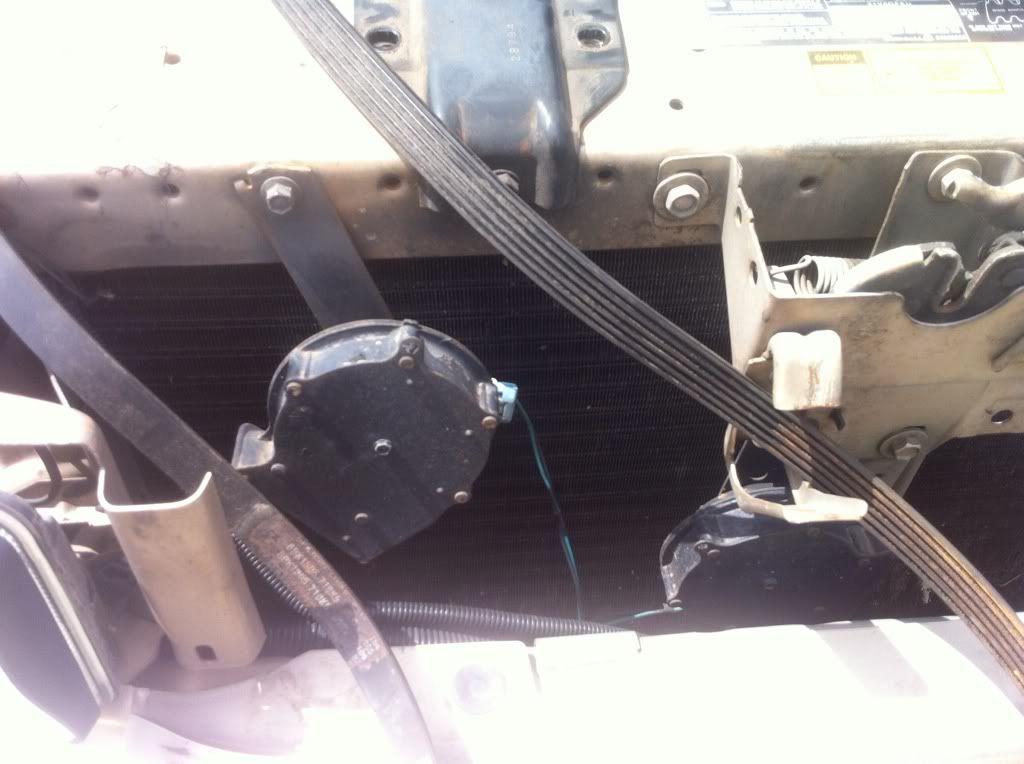

WP belt from bottom of crank in a counter clockwise direction
Crank
AC or bypass pulley
Alternator
PS pump
Up to tensioner
Down to crank
Imagine the Bonneville engine mount bracket isn't there.
http://i20.photobucket.com/albums/b2...r/IMG_2513.jpg
http://i20.photobucket.com/albums/b2...r/IMG_2510.jpg
http://i20.photobucket.com/albums/b2...r/IMG_2507.jpg
http://i20.photobucket.com/albums/b2...r/IMG_2506.jpg

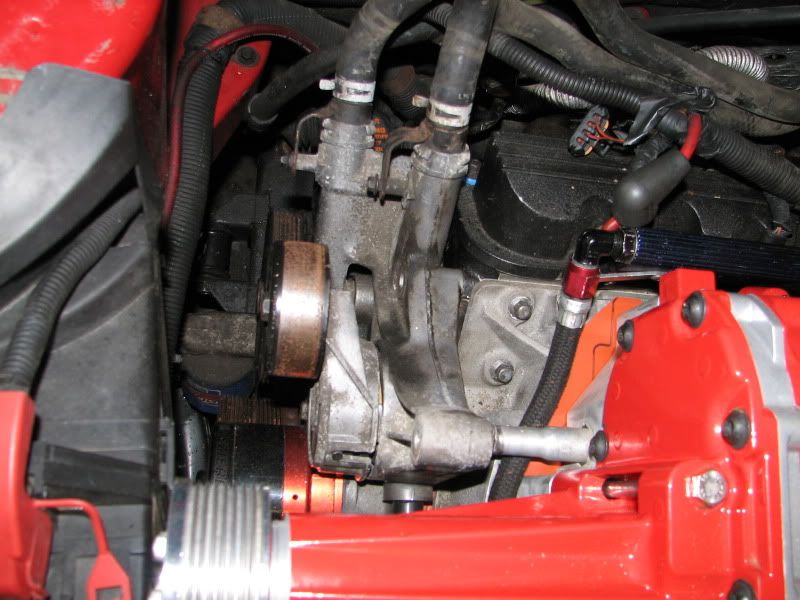

You won't have the same disstance between the power steering pump and the crank. I used a 2000-2005 Bonneville ps pump bracket. It is literally a simple bracket that puts the ps pump 1-1.5" inches back.
IC: I use two rolls of the gray rubberish gasket paper that sells for $5 a roll at the parts store. Then I get a tube of permatex 26B off the goop aisle and that's it. Make the gaskets to spec with a ball peen hammer like old timers used to. Put a line of 26B around all pressure/vacuum openings (pcv, boost bypass hole, LIM opening), put your first gasket down, another line of 26B on top of it, the IC, line of 26B, gasket, line of 26B and SC.
I apparently didnt do the pcv holes
first line
http://i20.photobucket.com/albums/b2...n/IMG_3615.jpg
Missed a pic of gasket
Missed a pic of gasket plus 26B
IC core with line
http://i20.photobucket.com/albums/b2...n/IMG_3616.jpg
Gasket on IC core
http://i20.photobucket.com/albums/b2...n/IMG_3617.jpg
Gasket with line
http://i20.photobucket.com/albums/b2...n/IMG_3621.jpg
Charger
http://i20.photobucket.com/albums/b2...n/IMG_3624.jpg
When running hoses through the body and possible sharp metal areas where it could rub. I use a larger sized hose to keep the hose from rubbing/punturing. A zip tie on either side keeps it in place.
http://i20.photobucket.com/albums/b2...n/IMG_3673.jpg
Feel free to browse my photobucket account
ID: BillBoost37
pswd: Boosted (B must be cap)
Albums
-Heads and rockers
-Supercharger\Intercooler plan
-Water pump\Meziere
Things to keep in mind when browsing. My IC core hung down into the LIM and therfore my Lim opening isn't the normal size/shape.
My car was a bonneville
I drilled/tapped a hole in my front head to be able to consider a dog bone mount if I ever desired it.
I often installed many other things at the same time.
Overall you are flying right along and it'll be done soon.
Re: Spartan GL's Build Thread: (5-1-2012) PG 37 for ENGINE/TRANS Dropped in
If he goes into that PB account...you know he's going to...
wait.
NVMD, carry on.
Re: Spartan GL's Build Thread: (5-1-2012) PG 37 for ENGINE/TRANS Dropped in
LOL... did we ever get that other dude back?
Re: Spartan GL's Build Thread: (5-1-2012) PG 37 for ENGINE/TRANS Dropped in
Bill i got the same PRJ fuel rails, got a write up of that too
Re: Spartan GL's Build Thread: (5-1-2012) PG 37 for ENGINE/TRANS Dropped in
I lost a few hours of my life looking through bills pb account. but i made it out of there, i got hungry lol its a shame more pics aren't labeled, you know whats going on but we all have to guess:th_winking:
Re: Spartan GL's Build Thread: (5-1-2012) PG 37 for ENGINE/TRANS Dropped in
Quote:
Originally Posted by
scottydoggs
I lost a few hours of my life looking through bills pb account. but i made it out of there, i got hungry lol its a shame more pics aren't labeled, you know whats going on but we all have to guess:th_winking:
More pictures of his wife the car stuff lol..

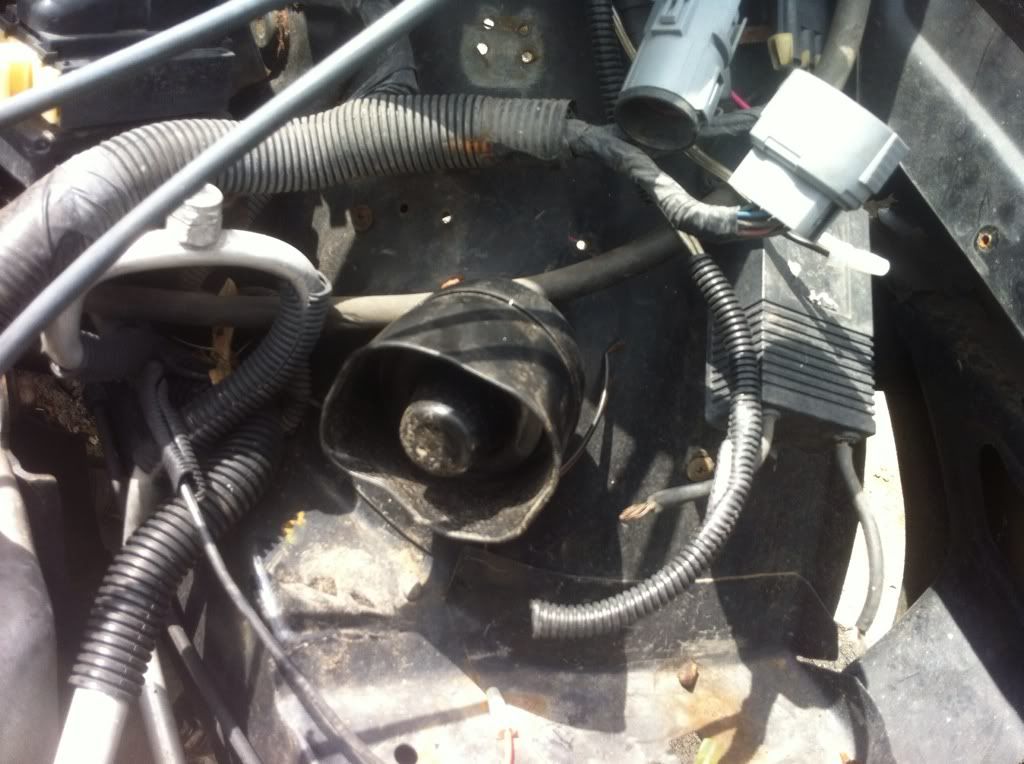

ANYWAY I am off to find a Transmission Dipstick and a few odds and ends at the junkyard.. Wish me luck.
Re: Spartan GL's Build Thread: (5-1-2012) PG 37 for ENGINE/TRANS Dropped in
Quote:
Originally Posted by
Spartan GL
Bill i got the same PRJ fuel rails, got a write up of that too
Yeah..

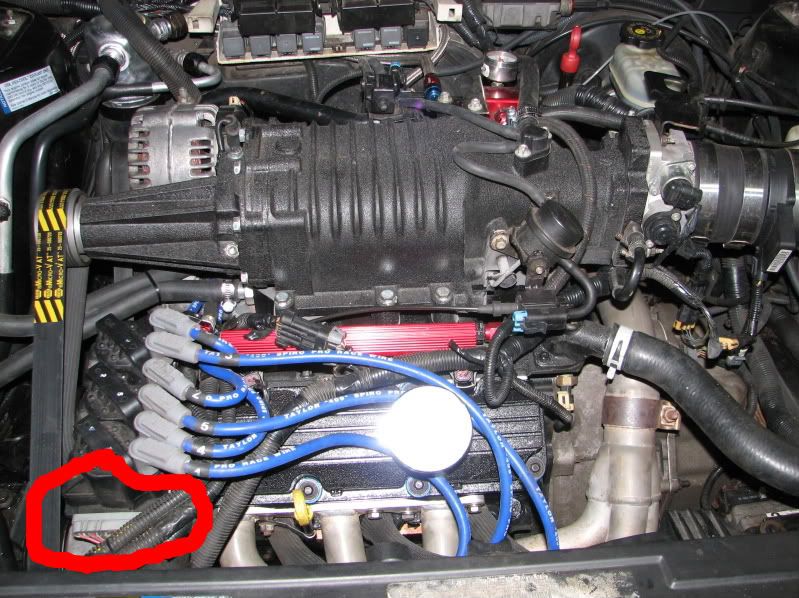

1. Bolt down do next item. You can't be serious about needing a write up on the fuel rails. I put the snout end hose under the snout and the TB end over the charger. Bolted to one of the PCV bolts.

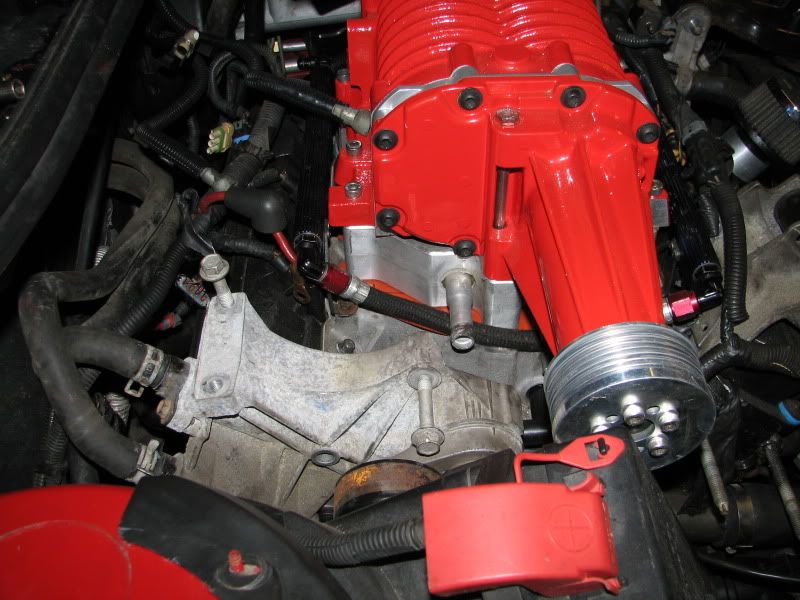

http://i20.photobucket.com/albums/b2...IMG_4368-1.jpg
Re: Spartan GL's Build Thread: (5-1-2012) PG 37 for ENGINE/TRANS Dropped in

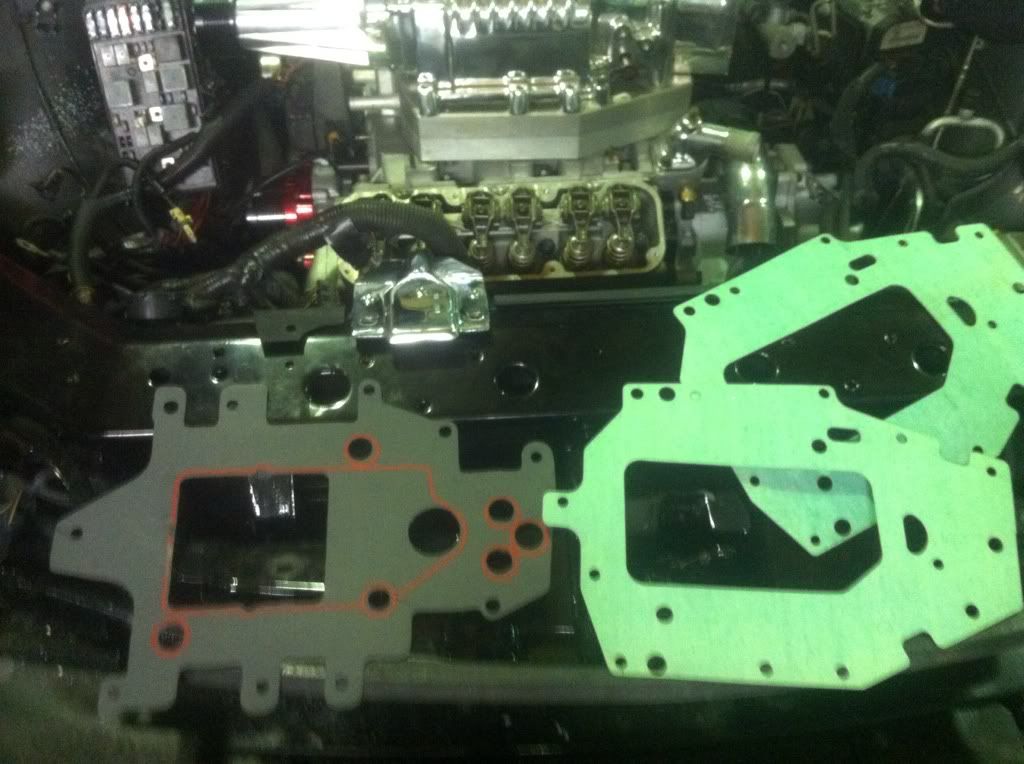

http://i917.photobucket.com/albums/a...l/265c6125.jpg
Stock gasket that came with the L67 Gasket kit and the 2 garloc gaskets ZZP zent...
http://i917.photobucket.com/albums/a...l/6f1fbf3c.jpg
Also my intercooler runs into this bracket, which bracket would i need to swap it out with?
Re: Spartan GL's Build Thread: (5-1-2012) PG 37 for ENGINE/TRANS Dropped in
Re: Spartan GL's Build Thread: (5-1-2012) PG 37 for ENGINE/TRANS Dropped in
Quote:
Originally Posted by
Spartan GL
IIRC there is a difference between the 97/98 Alt Bracket and the 99-03 bracket. You may have to get a new one if yours is the older one. ZZP recommends getting a alternator relocation kit, but I think you can either mod or swap the brackets and be fine... i think

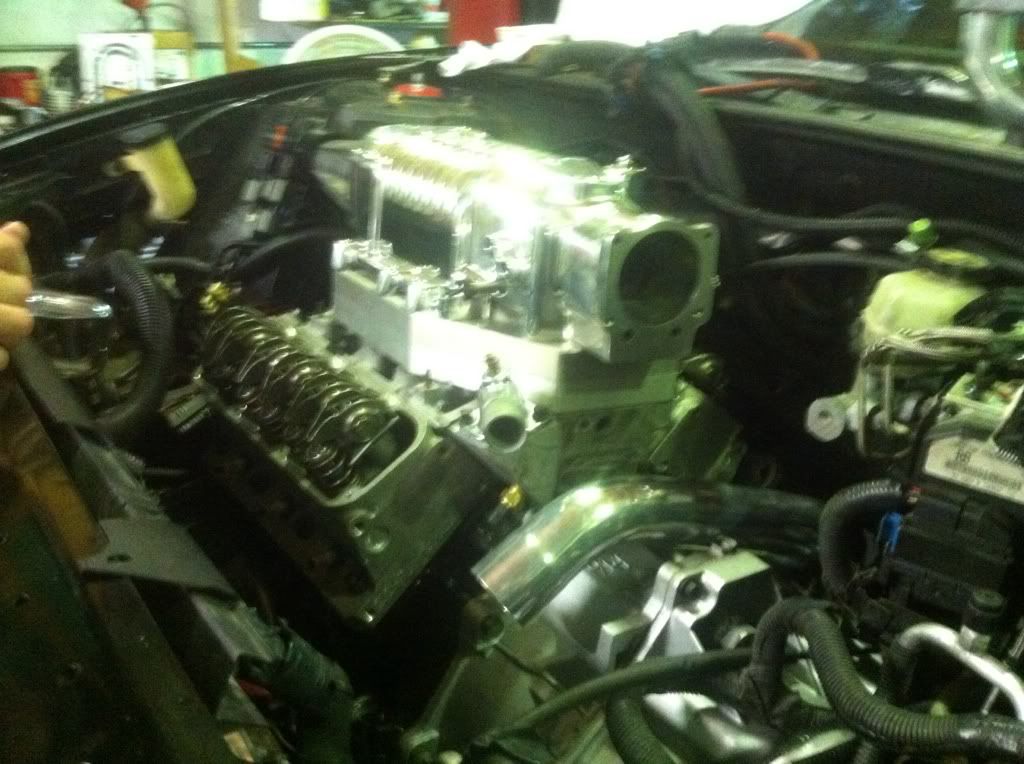

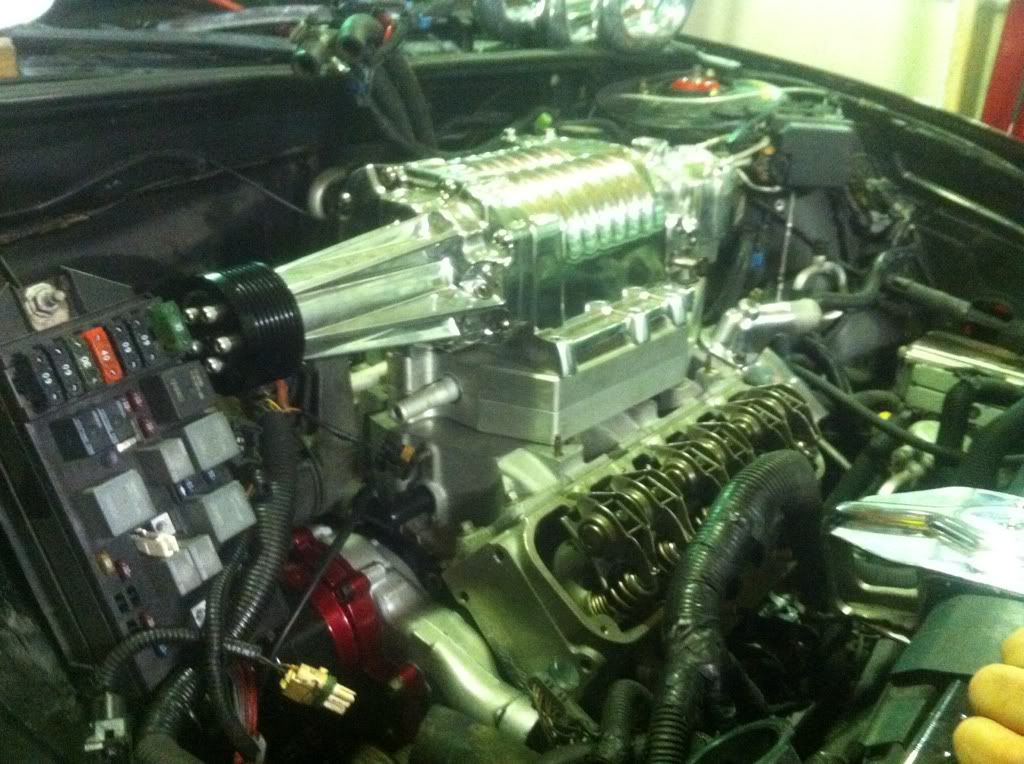

Re: Spartan GL's Build Thread: (5-4-2012) PG 38 For Mock/Tease photo
Love the car man I give you mad props! dang
Re: Spartan GL's Build Thread: (5-4-2012) PG 38 For Mock/Tease photo
Going to get pics...since you don't know the album.
Len's 97 GTP BTW in the Modding Visits section.
Re: Spartan GL's Build Thread: (5-4-2012) PG 38 For Mock/Tease photo
Re: Spartan GL's Build Thread: (5-4-2012) PG 38 For Mock/Tease photo
PS..if you need a bracket..holler.
Re: Spartan GL's Build Thread: (5-4-2012) PG 38 For Mock/Tease photo
Garleaks.
Better buy new ones before you start your car and wonder why it won't run.
Re: Spartan GL's Build Thread: (5-4-2012) PG 38 For Mock/Tease photo
Quote:
Originally Posted by
bluegtp91
Garleaks.
Better buy new ones before you start your car and wonder why it won't run.
Matt and I already explained the 26B no leak BillBoost proven system of IC'ing an engine. If he chooses to go with Garleaks, then we get to laugh at him in a couple more pages.
Re: Spartan GL's Build Thread: (5-4-2012) PG 38 For Mock/Tease photo
