**rocafella2032** · 01-20-2010

ok, starting to understand.are you running a wiring harness?

**GAFF** · 01-20-2010

all i have is the wires that are in that picture and the wires that came with the projectors

**BlownBigBlock** · 01-20-2010

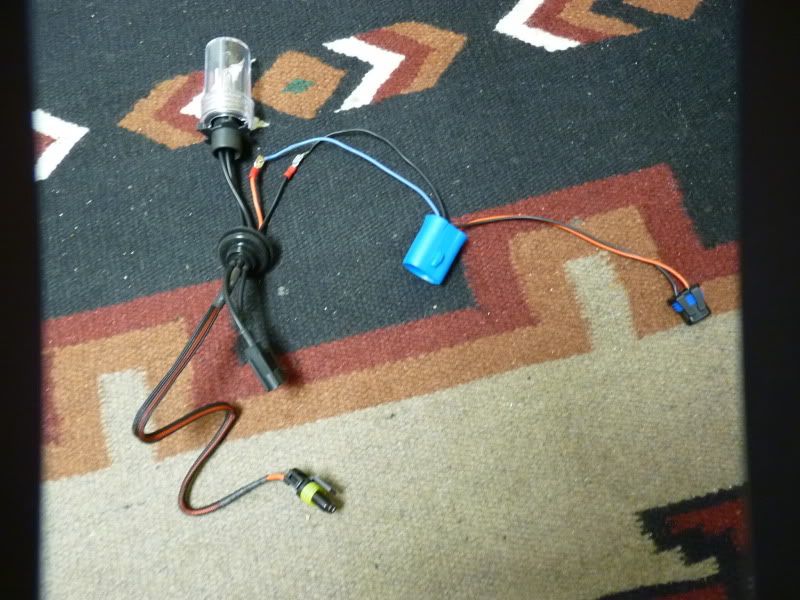

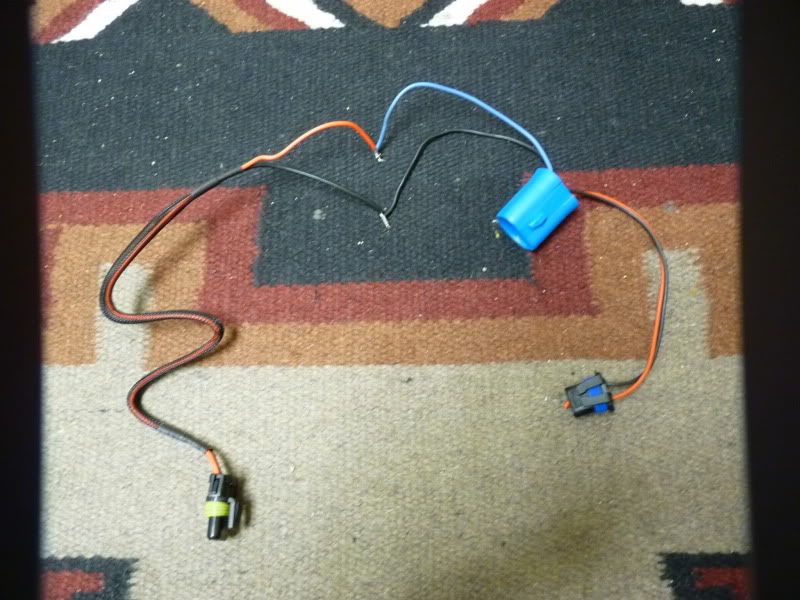

I did it both ways... The top picture is how it would be if you didn't pull the wires thru (I had already cut the female spade connectores on the the blue/black wires). Then second picture shows I removed the ballast power wire from the rubber plug in the first picture and just connected the directly to the blue/black wire. The plug with the yellow
insulator would get plugged into your ballast.

**GAFF** · 01-21-2010

Originally Posted by BlownBigBlock

mine looks nothing what so ever like that

**rocafella2032** · 01-21-2010

that looks different than mine?

**GAFF** · 01-21-2010

brown your talking about a different bulb hid kit i think

**GAFF** · 01-21-2010

roca ill get you a pic of mine friday

**BlownBigBlock** · 01-21-2010

Both my kits - H1 and H7's (for my fogs) were pretty much the same configuration, just a different mount for the type of bulb it was setup for. Could be why mine was so easy...

**GAFF** · 01-21-2010

mine was all pull and plug and play.. didnt cut anything what so ever

**rocafella2032** · 01-21-2010

Grafford can you still get those pics Friday? And bigblock thanks for the pictures, the more info the better.

**Spartan GL** · 01-23-2010

Roca

Those spades go into two different Plugs

The Black Spade goes into the BLACK WIRE that is feeding through the Rubber Cone thing and Connected to the Outside of the Frame (Near where the Bulb is.

And the Blue One goes into the Red wire That is Connected to the STOCK BLUB

plug and play too easy

**rocafella2032** · 01-23-2010

its not easy for me? all i need is someone to take a picture of how its set up...The words are just confusing me

**Spartan GL** · 01-23-2010

well i sent my projectors back for Dash Z's LED Projectors

so its going to be a new design

**rocafella2032** · 01-23-2010

whyd you send your old projectors back?

**Spartan GL** · 01-23-2010

Originally Posted by rocafella2032

whyd you send your old projectors back?

The Mounting Brackets are ****TY!!!!!!!!!!!!!!!!!!
and the Light output sucks

and the beams blow

**Spartan GL** · 01-23-2010

Take a Photo of your Projectors WITHOUT THE RUBBER CONE ON IT

and ill Edit in the Directions

**apierce1289** · 04-12-2011

I need help with this as well only I'm doing high and low beam :-)

**rocafella2032** · 04-12-2011

I got mine all solved, what do you need to know? I only did lows though

This thread makes me lolz at how dumb I was.

**apierce1289** · 04-12-2011

These are the projector headlights I have: 97-03 Pontiac Grand Prix Halo LED Projector Headlights Installation Guide | Dash Z Racing Blog

I know that the low beam bulbs are h3 as stated in the article. But what are the high beam bulbs and also I have to splice into the adapter that came with the headlights because it splits the high and low beam. And how easy are the bulbs to get in? Also any tips you have would be helpful
