Thread: porting supercharger specs please

Page 1 of 2 12 LastLast
Results 1 to 20 of 21
  1. #1 porting supercharger specs please
    GT Level Member DOUGLASMELTER's Avatar
    Join Date
    Apr 2009
    Location
    ERIE
    Posts
    370
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    gonna port my supercharger...anyone got specs for how far i can go. using my dremel here and done want to remove too much material.
    Last edited by DOUGLASMELTER; 08-26-2009 at 03:01 PM. Reason: misspell
    Reply With Quote


  2. #2 Re: proting supercharger specs please
    Banned - Busted For Scamming
    Join Date
    Feb 2009
    Location
    32812
    Posts
    3,060
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    Specs? Hmm... here is some pics though....

    For this pic, see the very right part of the outlet that looks like it has a hole... well that was a mess up, dont go past that first hole you will be fine.


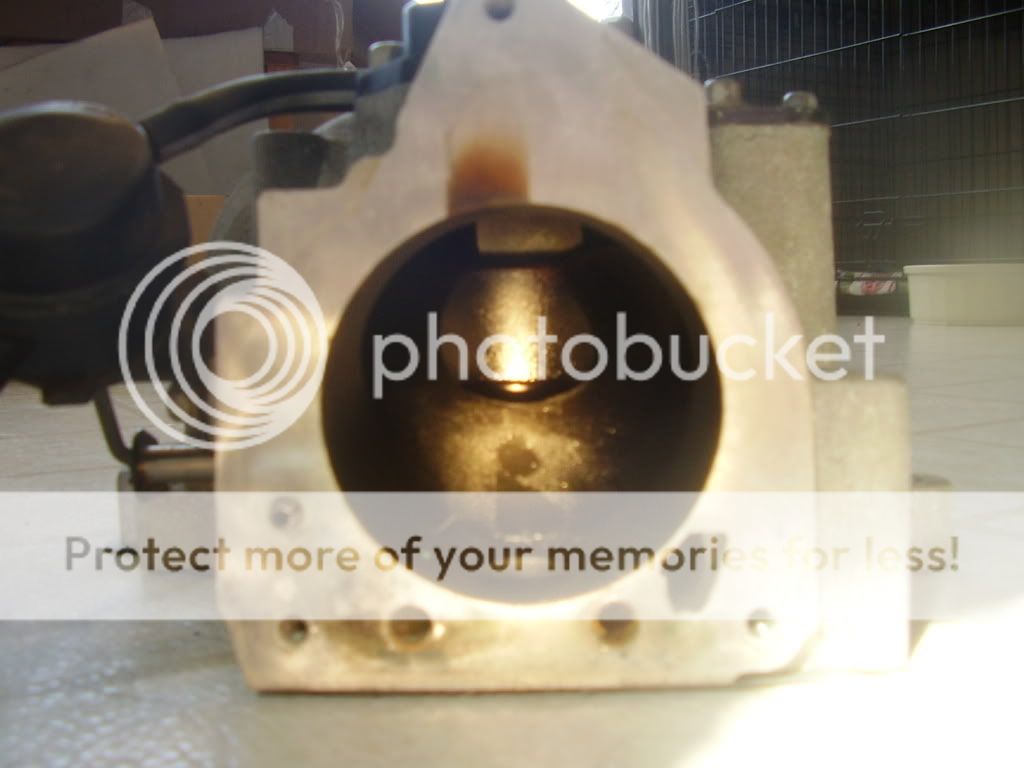

    Second pic.... inlet. Start by machining out to 78mm... like so....

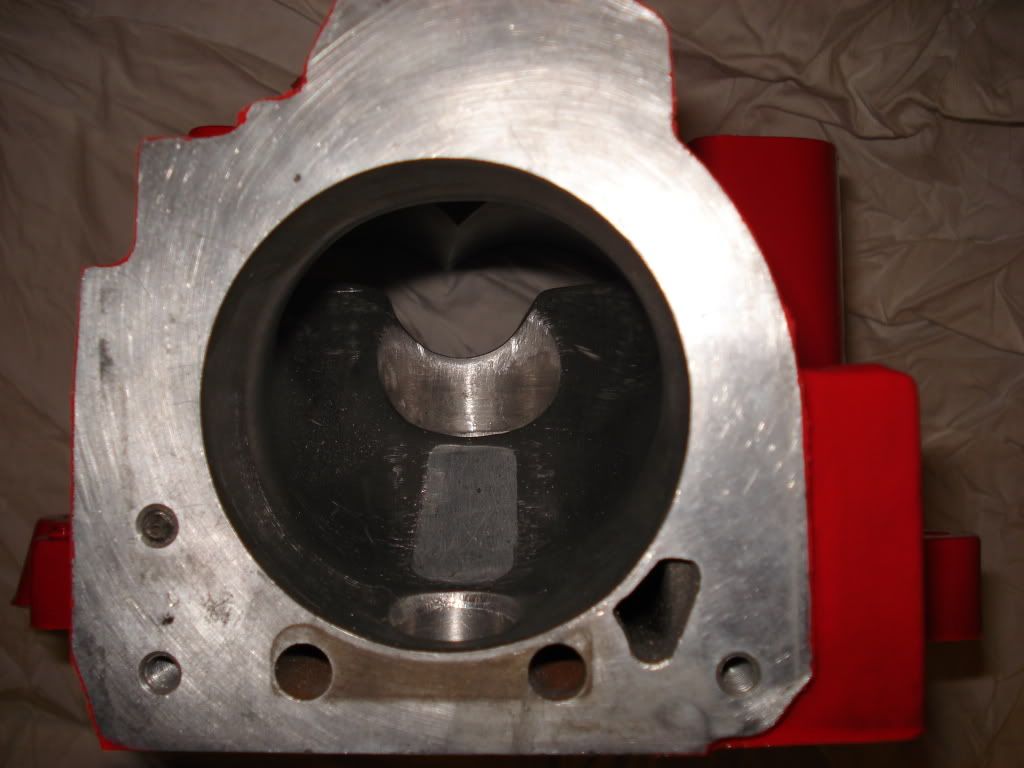

    Then blend...


    Finished outlet....


    Finally... powdercoated goodness....
    Reply With Quote


  3. #3 Re: proting supercharger specs please
    Banned - Busted For Scamming
    Join Date
    Feb 2009
    Location
    32812
    Posts
    3,060
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    Reply With Quote


  4. #4 Re: proting supercharger specs please
    GT Level Member DOUGLASMELTER's Avatar
    Join Date
    Apr 2009
    Location
    ERIE
    Posts
    370
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    so..on the site you gave me he still has the large seperation between the the traingle and bypass area. u have yours entire outlest area flat. it this due to two different superchargers or are they the same and yours works better?
    Reply With Quote


  5. #5 Re: porting supercharger specs please
    Banned - Busted For Scamming
    Join Date
    Feb 2009
    Location
    32812
    Posts
    3,060
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    They are the same superchargers. You want to take out that bar so that you optimize surface area of your intercooler. Make it look like the one above with the exception of what i said i went too far on the far right. You will see what im talking about when you look at the stock one.
    Reply With Quote


  6. #6 Re: porting supercharger specs please
    GT Level Member DOUGLASMELTER's Avatar
    Join Date
    Apr 2009
    Location
    ERIE
    Posts
    370
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    cant wait to get my supercharger back now so i can port it.
    Reply With Quote


  7. #7 Re: porting supercharger specs please
    Banned - Busted For Scamming
    Join Date
    Feb 2009
    Location
    32812
    Posts
    3,060
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    Where is it? lol

    Im working on one today. Just depends on your tools and skill as to how long it takes. A complete outlet like that was done in 20 minutes with a router. Dremel, not so much lol.
    Reply With Quote


  8. #8 Re: porting supercharger specs please
    Donating Users Liquifire's Avatar
    Join Date
    Jun 2009
    Location
    Wausau, WI
    Posts
    2,373
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    Quote Originally Posted by minichopper6hp View Post
    Where is it? lol

    Im working on one today. Just depends on your tools and skill as to how long it takes. A complete outlet like that was done in 20 minutes with a router. Dremel, not so much lol.
    did you do the powdercoating yourself in the above pics(the red one) that looked great!! and it wouldn match my car........
    98 GTP Coupe- 180* T-stat, GMPP Front Sway Bar, Dual Aeroforce Interceptor's, TDC FWI, TDC Taylor 10.4's, ZZP SS Plog, ZZP 3" SS catted DP, ZZP MPS W/3.4, AL104's gapped @.055, 3800Perf. PCM
    Reply With Quote


  9. #9 Re: porting supercharger specs please
    DUI BABY Bio248's Avatar
    Join Date
    Jan 2008
    Location
    MILWAUKEE
    Posts
    31,340
    Thanks (Received)
    0
    Likes (Received)
    1
    Dislikes (Received)
    0
    dont take out the H-bar unless your LIM is opened up to match it, intercooler or not.
    Reply With Quote


  10. #10 Re: porting supercharger specs please
    GTX Level Member DanGTP's Avatar
    Join Date
    Feb 2008
    Location
    Bentonville (WalMart-ville), AR
    Posts
    1,753
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    Don't forget to cut the gasket to match the larger openings, too...
    ~
    '97 GTP: 9.5:1 Diamonds, P&P Everything, XP, SSIC, GenV, Shiny Headers, 3.29's, HPTuners, E85
    Reply With Quote


  11. #11 Re: porting supercharger specs please
    Banned - Busted For Scamming
    Join Date
    Feb 2009
    Location
    32812
    Posts
    3,060
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    Quote Originally Posted by DanGTP View Post
    Don't forget to cut the gasket to match the larger openings, too...
    Lol yes dont forget that. Yes, i do all the work in-house.
    Reply With Quote


  12. #12 Re: porting supercharger specs please
    GT Level Member DOUGLASMELTER's Avatar
    Join Date
    Apr 2009
    Location
    ERIE
    Posts
    370
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    Quote Originally Posted by Bio248 View Post
    dont take out the H-bar unless your LIM is opened up to match it, intercooler or not.
    hell ill do this too then....anyone got pics of what i need to do to port my lim
    Reply With Quote


  13. #13 Re: porting supercharger specs please
    Bastard Reptile's Avatar
    Join Date
    Dec 2007
    Location
    Kansas City, MO
    Posts
    3,459
    Thanks (Received)
    0
    Likes (Received)
    2
    Dislikes (Received)
    0
    Look at the one on ZZP's site, and copy that.
    Reply With Quote


  14. #14 Re: porting supercharger specs please
    The Blue One blueguy's Avatar
    Join Date
    Jun 2008
    Location
    Dirtyzville, Missery
    Posts
    31,287
    Thanks (Received)
    1
    Likes (Received)
    2
    Dislikes (Received)
    0
    Quote Originally Posted by Reptile View Post
    Look at the one on ZZP's site, and copy that.
    I second that.

    https://www.zzperformance.com/products_img/162_1.jpg
    Sold WBody's: '03 Blue GTP/'98 Green GTP/'98 Silver GT/'05 GXP
    '99 Chevrolet Silverado Classic Z71 4x4 - K&N Intake/Gibson Exhaust #TRUCKTHINGS
    '12 Buick Regal Turbo - ZZP CAI/20% Tint/HID's
    '89 Ford Mustang LX Notchback - LM7 5.3, 4L80, 9", HX40
    '04 Chevrolet Corvette MRM A4/LS1 - TSP LT's, 3"O/R X, AFE S2 CAI
    Reply With Quote


  15. #15 Re: porting supercharger specs please
    SE Level Member
    Join Date
    Dec 2008
    Location
    michigan
    Posts
    19
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0


    here is my zzp chargrer

    Its all about the inlet! the outlet work dont do crap unless you got an IC.
    Reply With Quote


  16. #16 Re: porting supercharger specs please
    Banned - Busted For Scamming
    Join Date
    Feb 2009
    Location
    32812
    Posts
    3,060
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    Quote Originally Posted by explokid View Post
    Its all about the inlet! the outlet work dont do crap unless you got an IC.
    Not entirely true. The outlet gains are alot especially when you take out the bolt bosses for the "V"
    Reply With Quote


  17. #17 Re: porting supercharger specs please
    DUI BABY Bio248's Avatar
    Join Date
    Jan 2008
    Location
    MILWAUKEE
    Posts
    31,340
    Thanks (Received)
    0
    Likes (Received)
    1
    Dislikes (Received)
    0
    the outlet increases efficiency and decreases outlet temperatures...how can you say it doesnt do anything? you are one messed up dude.
    Reply With Quote


  18. #18 Re: porting supercharger specs please
    GT Level Member DnaProdigy's Avatar
    Join Date
    Jul 2008
    Location
    New York
    Posts
    431
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    The purpose of porting: Items are ported so that the outlet of item A matches the inlet of item B. Lets say the outlet of the TB looks like O and the inlet of the blower looks like o. You want to open up the inlet of the blower so it looks like O. Any bigger or any smaller and your being inefficient. The moral of the story, you have to make the inlets and outlets match.

    Polishing: Polishing (and routing down the outlet of the blower) smooths the rough surface thus reducing turbulence. Turbulence in this case is when air hits a rough surface and switches direction going a different way then intended. Moral of the story, you have to rout down and polish the surface of the outlet just enough so its smooth.

    How to port the blower inlet: minichopper6hp detailed exactly how to port the inlet of the blower in the second post of this thread. Match the size of the TB then blend it down so the ridge is eliminated. How much do you take off of the ridge? Just enough so it is eliminated. By ridge i mean the bump you will make by machining the inlet to match.

    In addition to porting it you want to fill up the long oval like indent on the bottom of the inlet. You can see a great example of this in minichopper6hp post, Pictures 2 and 3.

    Outlet: Flatten down the surface until it is smothe. How much do you take off, enough until its smooth. No measurements are required. Flatten down the bumps on the bottom of the triangle so the material is the same thickness as what you just routed. Take out the H-Bar if you want to, it really isnt necessary untill you have an IC. Its self explanator, dont go deeper then the surface you just routed down or wider then the outlet allready is. Now rout the bottom triangle down so it looks like a complete triangle, not like a weird triangle with bumps on the bottom. If you know what a triangle looks like you can do it.

    If you want to go one step further you can rout the lip at the bottom of the triangle a LITTLE bit (its if this helps a ton or not). This is the part below the triangle that is raised up creating the seal between the blower and the LIM. Blend the bottom of the triangle to this area in a round manner not square. Take less then half of the material away (from the survacce facing toward the inlet side of the blower). Take too much, or from the top of the lip and your screwed. You can see the finished job in exploki's post.
    Last edited by DnaProdigy; 09-02-2009 at 09:42 AM.
    2006 Grand Prix GXP
    Reply With Quote


  19. #19 Re: porting supercharger specs please
    SE Level Member buford1972's Avatar
    Join Date
    Apr 2009
    Location
    Peoria, Arizona
    Posts
    55
    Thanks (Received)
    0
    Likes (Received)
    0
    Dislikes (Received)
    0
    What style router bit did you use to remove the outlet bar?
    Reply With Quote


  20. #20 Re: porting supercharger specs please
    DUI BABY Bio248's Avatar
    Join Date
    Jan 2008
    Location
    MILWAUKEE
    Posts
    31,340
    Thanks (Received)
    0
    Likes (Received)
    1
    Dislikes (Received)
    0
    a big beefy one. to take out that much material its best to just use a lathe.
    Reply With Quote
